Processes nonwoven fiberglass mat for automotive applications - high-temperature setting, film lamination (or powder coating), hot pressing, cold pressing into boards and cutting.
| Model / series | ZH-190-270 |
|---|---|
| Nominal width | 180-250cm |
| Machine speed | 3-12m/min |
| Typical running speed | 5-6m/min |
| Heat source | thermal oil 15%; natural gas 80%; steam 5% |
| Oven | Configured to customer needs |
| Materials | Nonwoven fiberglass mat (automotive) |
| Processes | High-temperature setting, film/powder lamination, hot pressing, cold pressing into boards, cutting |
Processes nonwoven fiberglass mat for automotive applications - high-temperature setting, film lamination (or powder coating), hot pressing, cold pressing into boards and cutting.
Published USE: processes nonwoven fiberglass mat for automotive applications—high-temperature setting, film lamination (or powder coating), hot pressing, cold pressing into boards and cutting.

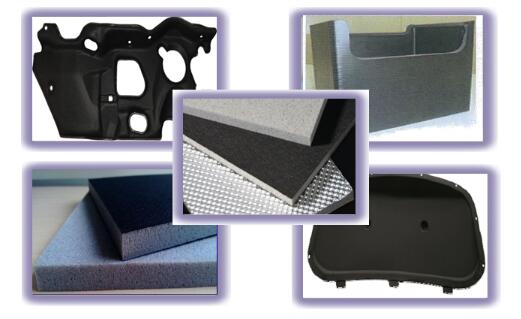

Typical path for interior board parts: fiberglass mat → high-temp set → film or powder composite → hot press → cold press to board → cut to blank. Film vs powder is a primary path choice, not an afterthought.
Listed under Other for automotive board inquiries. The Carpet-category twin is carpet-10 (same ZH-190-270 TECH family)—send one scoped inquiry; sales will not double-book identical lines.
Model ZH-190-270; nominal width 180–250 cm; machine speed 3–12 m/min; typical running speed 5–6 m/min.

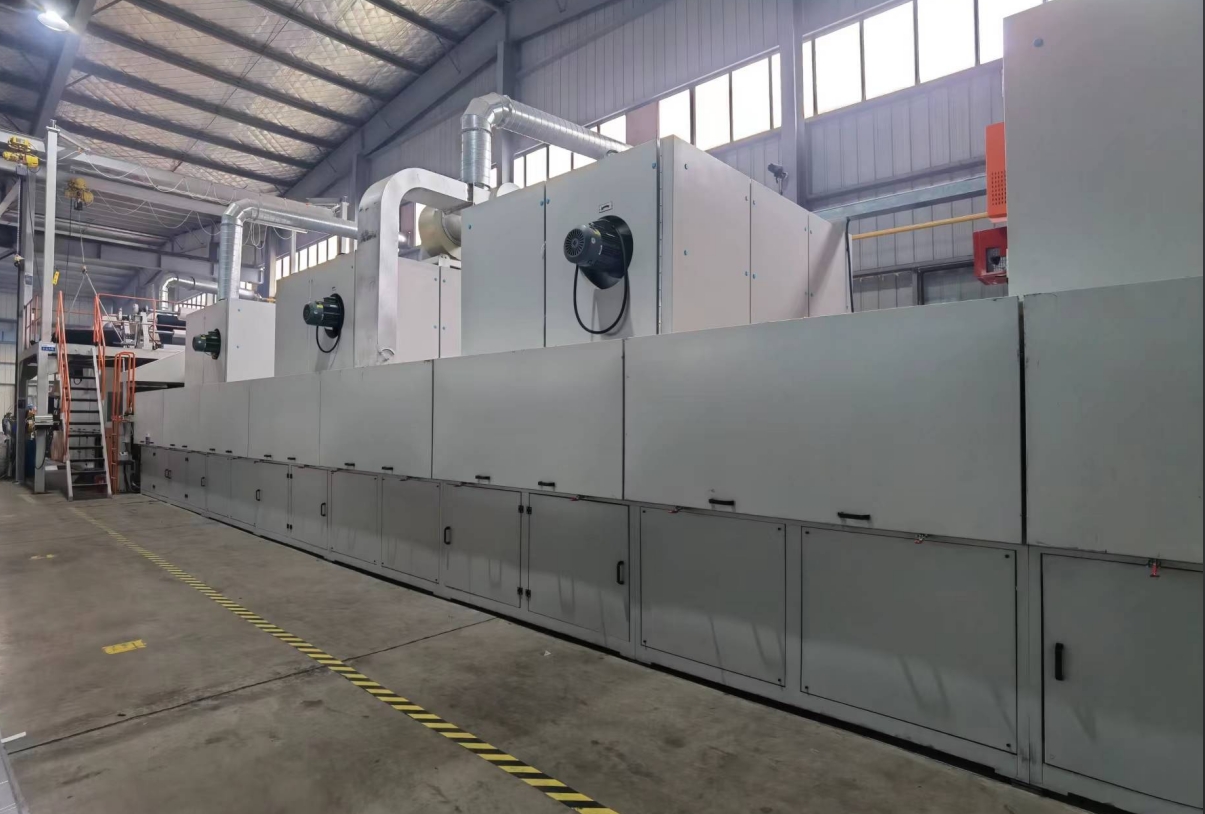

Heat-source mix oil 15% / gas 80% / steam 5%; oven configured to customer needs. Board thickness, blank size, and OEM flatness rules usually set the stable window below mechanical max.
Bring mat basis weight, target board gauge, film or powder preference, blank sizes, and heat source before locking press and cut.
Material dusting device (publication CN218423916U): powder/dusting direction for the powder-coat composite option on automotive board programs.
Roller laminating device with pressing structure (publication CN214919218U): film-lamination / pressing direction when film is the primary path.
Cold pressing plate device (publication CN220149875U): cold-press plate direction for the cold-pressing-into-boards step. Patent notes are technical directions only—not present legal-force claims. Category: Other machinery.
This page (Other): automotive fiberglass nonwoven board host—set → film/powder → hot/cold press → cut—for interior board blanks.
Nonwoven fiberglass mat board (Carpet): same TECH family listed beside carpet/nonwoven neighbors. Compare pages; do not treat them as two unrelated machines.
Nonwoven high-temp glue setting: glue set without the published board press/cut chain.
Usually a fit: automotive suppliers needing fiberglass nonwoven mat turned into pressed boards and cut blanks; width inside 180–250 cm; samples for press trials; clear film vs powder preference.
Usually another page: glue-set-only nonwovens (carpet-09); latex mattress (other-02); conveyor belt PVC/PU coat/lam (other-01); general textile coating without board press (coating category).
PVC/PU coating and lamination line for conveyor belt surfaces - improves abrasion resistance, anti-sticking, antistatic, high-temperature resistance and anti-corrosion.
Production line for latex products and mattresses - natural or synthetic latex processed through mixing, foaming, molding, vulcanization, demolding, washing and drying.
A: TECH: model ZH-190-270; nominal width 180–250 cm; machine speed 3–12 m/min; typical running speed 5–6 m/min; heat mix oil 15% / gas 80% / steam 5%; oven configured. Materials: nonwoven fiberglass mat (automotive). Full fields are in the TECH table.
A: Both publish the ZH-190-270 family and the same process list. This Other page is the automotive board listing; carpet-10 is the Carpet-category twin. One inquiry with mat/board specs is enough—sales routes the host.
A: Both are published. Stable film specs often lean film; tunable powder add-on leans dusting (CN218423916U direction). Lock one primary path with OEM samples.
A: Public CN214919218U (roller laminating with pressing) and CN220149875U (cold pressing plate). Delivered press geometry follows the quotation—not every drawing feature by default.
A: Mat basis weight, board thickness/blank size, film vs powder, heat source, cut tolerance, and output. Samples shorten press and oven design. Call +86 510 83397635 / +86 510 83382635 or email info@xhmachinery.com.
A: Yes. Xinghua custom-builds to your process. Machines run in 20+ countries; installation, operator training, and lifetime technical support are available under contract.
