Coating machine for advertising banners - PU, PVC, epoxy and silicone coating on polyester and fiberglass outdoor fabrics for anti-aging, high-temperature resistance and ink-bleed-free high-resolution printing.
| Model / series | TC-180-420 |
|---|---|
| Nominal width | 180-420cm |
| Machine speed | 5-65m/min |
| Typical running speed | 30-40m/min |
| Heat source | thermal oil 90%; natural gas 5%; steam 5% |
| Oven | Configured to customer needs |
| Substrates | Polyester, fiberglass and other outdoor fabrics |
| Coating systems | PU, PVC, epoxy, silicone |
| Tension control | Imported constant tension controller |
| Temperature control | Automatic temperature control system |
| Coating head | Infrared automatic glue stop |
Coating machine for advertising banners - PU, PVC, epoxy and silicone coating on polyester and fiberglass outdoor fabrics for anti-aging, high-temperature resistance and ink-bleed-free high-resolution printing.
Published USE: PU, PVC, epoxy and silicone coating on polyester and fiberglass outdoor fabrics for anti-aging, high-temperature resistance and ink-bleed-free high-resolution printing.
TECH also lists imported constant tension control, automatic temperature control, and infrared automatic glue stop on the coating head, plus automatic edge-detection for alignment (Key Advantages).

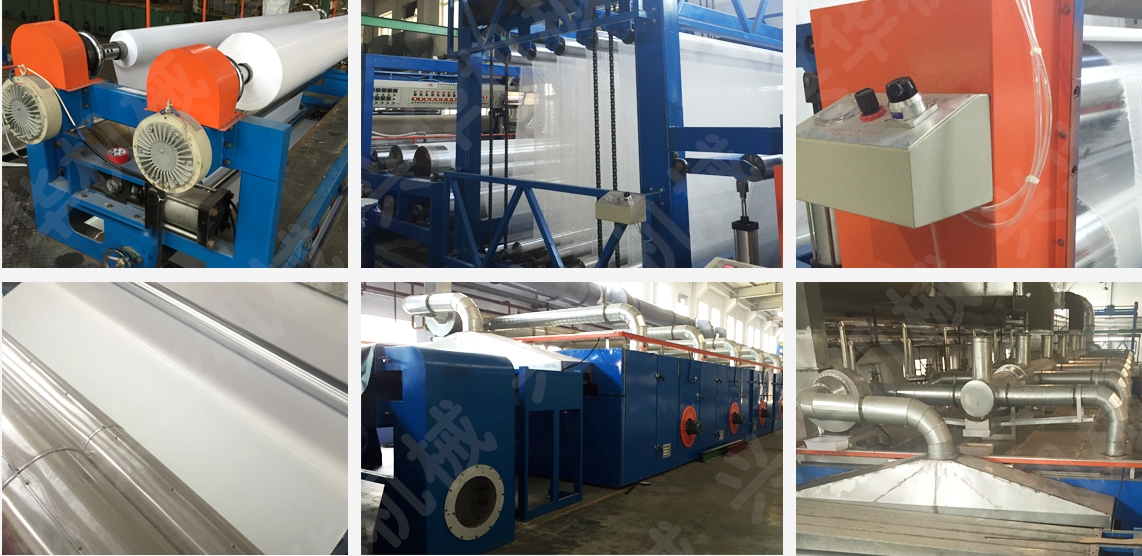

Typical path: unwind / guide → tensioned infeed → coat (PU/PVC/epoxy/silicone per order) → dry & set → cool → rewind. Outdoor print faces need even film and stable tension so inkjet does not strike through.
Model TC-180-420 matches the published coating platform family; this page specializes substrates and chemistries for advertising banners.
Nominal width 180–420 cm; machine speed 5–65 m/min; typical running speed 30–40 m/min. Coat weight and dryer length decide the stable window—mechanical max is not a print-ready guarantee.
Heat-source mix favors thermal oil (90% / gas 5% / steam 5%); oven configured to customer needs.
Coating head (publication CN205995710U): adjustable head direction for chemistry and knife-gap changeovers across PU / PVC / epoxy / silicone.
Temperature-control feeding frame (publication CN205995744U): tensioning, photoelectric centering, temperature control and synchronous tracking so outdoor cloth enters the head with less wrinkle risk.
Lifting coating head (publication CN210847004U) is an optional related direction for head lift. Category list: Coating machinery. Patent notes are technical directions only.
This page: outdoor banner print faces—PU/PVC/epoxy/silicone on polyester/fiberglass with published tension and IR glue-stop features.
Tarpaulin coater: FR and weather-resistant transport / architectural covers.
Mesh coater: yarn-lock / anti-slip mesh (including large banner mesh).
Multi-function: mixed industrial films without a banner SKU focus.
Usually a fit: polyester or fiberglass outdoor banner programs needing print-ready functional coats; width inside 180–420 cm; willingness to sample paste and ink bleed.
Usually another page: luggage oxford pad-coat (coating-04); conveyor-belt heavy coats (coating-08); carpet tile hosts (Carpet).
Even color coating, special hand feel and breathable functional coatings for a wide range of fabrics, compatible with PVC, epoxy and other industrial textile coatings.
Coating machine developed for blackout curtain fabrics, can also apply flocking - semi-blackout, full blackout, blackout flocking, flame retardant, heat insulation and UV protection finishing.
A: TECH on this page: model TC-180-420; nominal width 180–420 cm; machine speed 5–65 m/min; typical running speed 30–40 m/min; heat mix thermal oil 90% / natural gas 5% / steam 5%; oven configured to customer needs. Substrates: polyester, fiberglass and other outdoor fabrics; systems: PU, PVC, epoxy, silicone.
A: TECH lists imported constant tension control, automatic temperature control, and infrared automatic glue stop on the coating head. Key Advantages also note automatic edge-detection for alignment. Exact delivered options follow the quotation.
A: Public CN205995710U (coating head) and CN205995744U (temp-control feeding frame); optional CN210847004U (lifting head). Delivered head/frame follow the order—not every drawing feature by default.
A: Banner page focuses on print-ready outdoor chemistries and ink-bleed control. Tarpaulin (coating-06) emphasizes FR/weather transport covers; mesh (coating-05) emphasizes yarn lock and anti-slip. Same width/speed platform family—different USE.
A: Substrate, primary chemistry (PU/PVC/epoxy/silicone), print method, width, heat source, and target shift output. Fabric and paste samples shorten head and dryer design. Call +86 510 83397635 / +86 510 83382635 or email info@xhmachinery.com.
A: Yes. Xinghua custom-builds to your process. Machines run in 20+ countries; installation, operator training, and lifetime technical support are available under contract.
