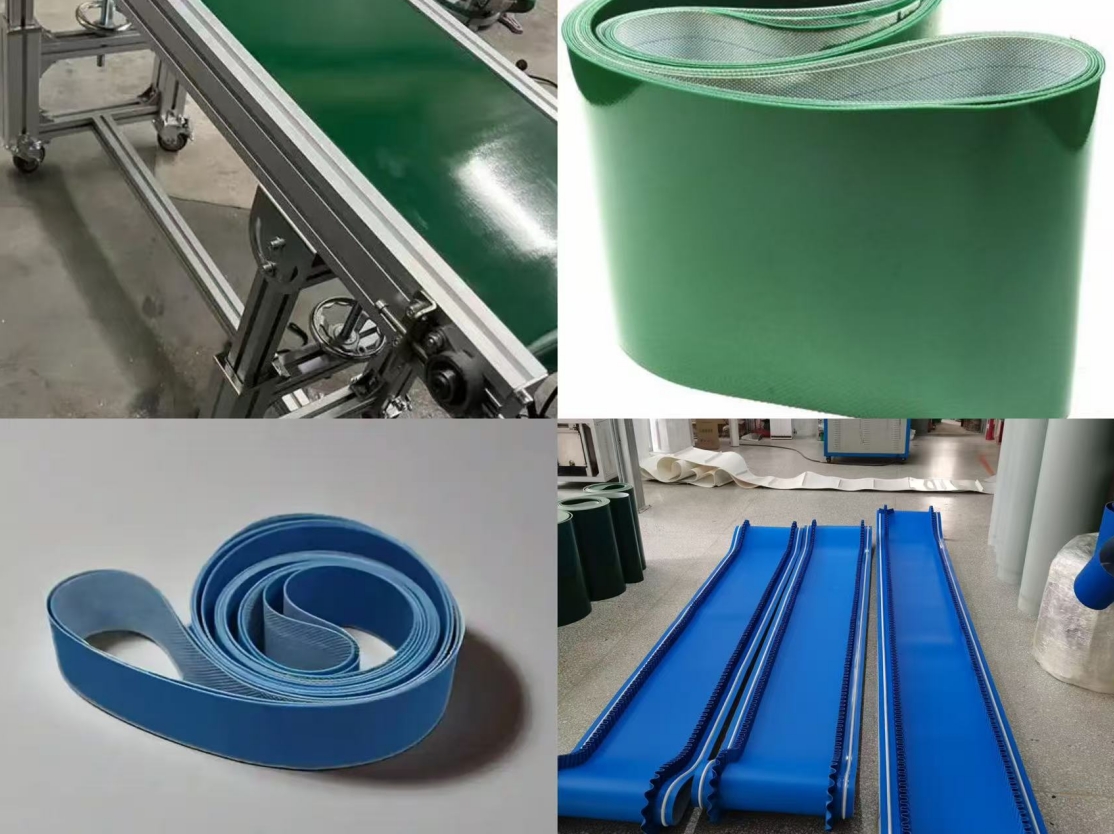

PVC/PU coating and lamination line for conveyor belt surfaces - improves abrasion resistance, anti-sticking, antistatic, high-temperature resistance and anti-corrosion.
| Model / series | TC-200-320 |
|---|---|
| Nominal width | 180-300cm |
| Machine speed | 5-15m/min |
| Typical running speed | 8-12m/min |
| Heat source | thermal oil 20%; natural gas 80% |
| Oven | No oven |
| Process | PVC/PU coating and lamination |
| Functions | Abrasion resistance, anti-sticking, antistatic, high-temperature resistance, anti-corrosion |
PVC/PU coating and lamination line for conveyor belt surfaces - improves abrasion resistance, anti-sticking, antistatic, high-temperature resistance and anti-corrosion.
Published USE: PVC/PU coating and lamination for conveyor belt surfaces—improves abrasion resistance, anti-sticking, antistatic, high-temperature resistance and anti-corrosion.

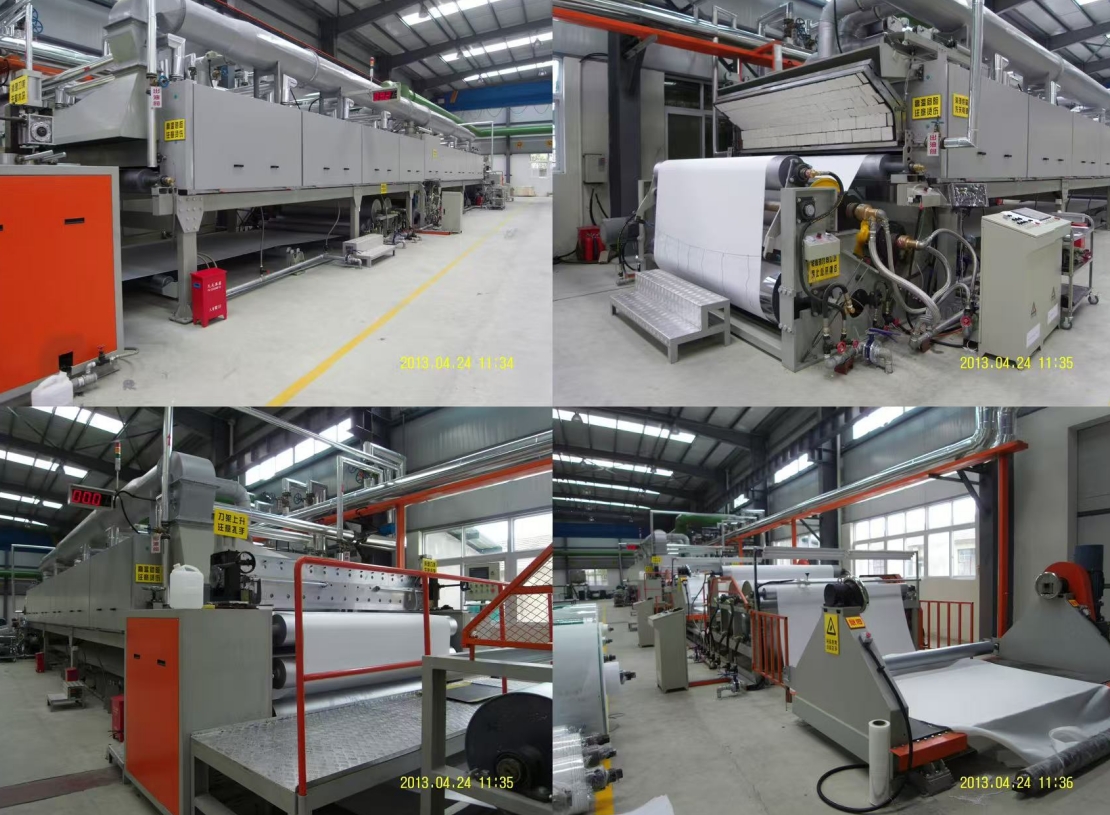

Typical path: belt/substrate infeed → PVC or PU coat → laminate / press as ordered → cool / exit → rewind or cut. TECH on this page lists No oven—do not import chamber lengths from oven-configured coating pages.
Heat-source mix on TECH is thermal oil 20% / natural gas 80%. Exact heating arrangement still follows the quotation for belt gauge and paste window.
Model TC-200-320; nominal width 180–300 cm; machine speed 5–15 m/min; typical running speed 8–12 m/min.
Process: PVC/PU coating and lamination. Functions listed: abrasion resistance, anti-sticking, antistatic, high-temperature resistance, anti-corrosion—these are published function aims, not locked lab grades without samples.
Confirm belt carcass, PVC vs PU, coat weight, whether lamination is same-pass, and plant energy before locking head and press layout.
Coating head (publication CN205995710U) and combination coating head (CN205995709U): public texts describe adjustable / combination head layouts for coating machines—process context for PVC/PU coat changeovers.
Roller laminating device with pressing structure (publication CN214919218U): laminating/pressing direction matching the published lamination step.
This page is No oven—oven publications are not claimed as delivered here. Patent notes are technical directions only. Category: Other machinery. Related coating listing: coating-08.
This page (Other): PVC/PU conveyor belt coating & laminating on TC-200-320; width 180–300 cm; speed 5–15 (typ 8–12); oil 20% / gas 80%; no oven.
Industrial conveyor belt coater: TC-180-420 coating platform with oven configured—different TECH envelope.
Multi-function coater: general industrial textile coats—not belt-specific PVC/PU lam.
Usually a fit: conveyor belt plants needing PVC/PU surface coat and/or lamination for the published function set; width inside 180–300 cm; acceptance of the no-oven TECH on this page (or a clear ask to add dry modules in the contract).
Usually another page: oven-configured conveyor coating narrative (coating-08); apparel/curtain coats (coating-01/02); carpet tile hosts (carpet-01/02).
Production line for latex products and mattresses - natural or synthetic latex processed through mixing, foaming, molding, vulcanization, demolding, washing and drying.
Processes nonwoven fiberglass mat for automotive applications - high-temperature setting, film lamination (or powder coating), hot pressing, cold pressing into boards and cutting.
A: TECH: model TC-200-320; nominal width 180–300 cm; machine speed 5–15 m/min; typical running speed 8–12 m/min; heat mix thermal oil 20% / natural gas 80%; no oven. Process: PVC/PU coating and lamination. Full fields are in the TECH table.
A: Abrasion resistance, anti-sticking, antistatic, high-temperature resistance and anti-corrosion—published aims for PVC/PU conveyor belt surface treatment. Locked acceptance values still need samples and standards named in the inquiry.
A: Public CN205995710U / CN205995709U describe coating-head and combination-head directions; CN214919218U describes roller laminating with pressing. Delivered heads and presses follow the quotation.
A: coating-08 is the industrial conveyor belt coater on TC-180-420 with oven configured. This Other page is TC-200-320 PVC/PU coat & lam with no oven on TECH. Align substrate and whether you need oven chambers before picking a page.
A: Belt carcass, PVC vs PU, coat weight, same-pass lamination yes/no, width, heat source, and target functions/standards. Call +86 510 83397635 / +86 510 83382635 or email info@xhmachinery.com.
A: Yes. Xinghua custom-builds to your process. Machines run in 20+ countries; installation, operator training, and lifetime technical support are available under contract.
