Coating machine developed for blackout curtain fabrics, can also apply flocking - semi-blackout, full blackout, blackout flocking, flame retardant, heat insulation and UV protection finishing.
| Model / series | TC-180-420 |
|---|---|
| Nominal width | 180-420cm |
| Machine speed | 5-65m/min |
| Typical running speed | 30-40m/min |
| Heat source | thermal oil 90%; natural gas 5%; steam 5% |
| Oven | Configured to customer needs |
| Fabrics | Polyester, cotton, poly-cotton |
| Processes | Semi-blackout, full blackout, blackout flocking, blackout FR, heat insulation, UV protection |
| Control | Circulating air even temperature, constant tension |
Coating machine developed for blackout curtain fabrics, can also apply flocking - semi-blackout, full blackout, blackout flocking, flame retardant, heat insulation and UV protection finishing.
Published USE: developed for blackout curtain fabrics; can also apply flocking—covering semi-blackout, full blackout, blackout flocking, flame retardant, heat insulation, and UV protection finishing.
TECH fabrics: polyester, cotton, poly-cotton. Control notes: circulating air for even temperature and constant tension for stable running.
When blackout and flocking share one line, decide wet-join vs dry-join and total dryer length early so width and tension zones stay consistent at the interface.
Model TC-180-420 matches the multi-function width platform; this page specializes the process list for curtain / flocked curtain.
Nominal width 180–420 cm; machine speed 5–65 m/min; typical running speed 30–40 m/min. Blackout coat weight and flock density usually pull the stable speed below mechanical max—sample before promising shift output.
Heat-source mix favors thermal oil on this series; oven is configured to customer needs.
Coating head (publication CN205995710U): public text describes an adjustable coating head for coating machines—relevant when switching blackout paste weights or knife gaps between semi- and full-blackout SKUs.
Temperature-control feeding frame (publication CN205995744U): steadies tension, centering, and infeed temperature tracking so curtain greige enters the head with less wrinkle risk before critical blackout coats.
More infeed/outfeed/head patents are listed on Coating machinery. For electrostatic flocking as a stand-alone category, see Flocking. Patent notes are technical directions only.
List which processes you need from the published set: semi-blackout, full blackout, blackout flocking, blackout FR, heat insulation, UV protection. Say whether flocking is same-line or a second pass.
Related pages: multi-function coater for mixed industrial films; electrostatic flocking machine when flocking is the primary module.
Usually a fit: polyester / cotton / poly-cotton curtain programs needing blackout and related functional finishes; optional blackout flocking; width inside 180–420 cm.
Usually another page: outdoor banner chemistry focus (coating-03); carpet tile backing (Carpet); flocking-only with no curtain coat (flocking category).

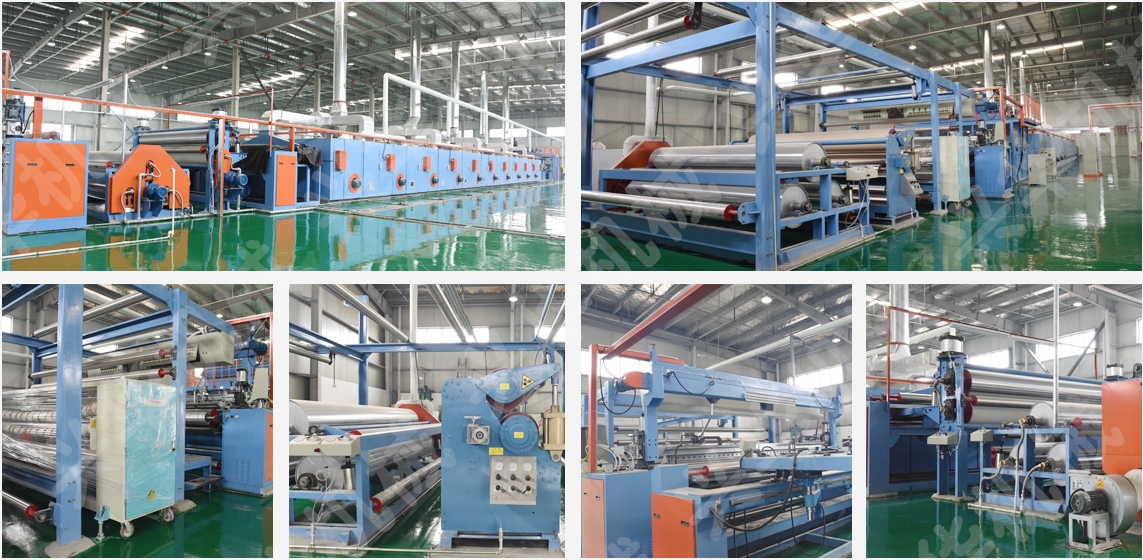

Curtain fabric coating machine — whole line (customer photos).
Even color coating, special hand feel and breathable functional coatings for a wide range of fabrics, compatible with PVC, epoxy and other industrial textile coatings.
Coating machine for advertising banners - PU, PVC, epoxy and silicone coating on polyester and fiberglass outdoor fabrics for anti-aging, high-temperature resistance and ink-bleed-free high-resolution printing.
A: TECH on this page: model TC-180-420; nominal width 180–420 cm; machine speed 5–65 m/min; typical running speed 30–40 m/min; fabrics polyester, cotton, poly-cotton; processes include semi/full blackout, blackout flocking, blackout FR, heat insulation, UV protection. Full fields are in the TECH table above.
A: Published USE says the machine can also apply flocking alongside blackout curtain finishing. Confirm same-line vs second-pass, adhesive system, and dryer length in the proposal—do not assume every blackout SKU shares one flock recipe.
A: Public CN205995710U (coating head) and CN205995744U (temp-control feeding frame) are the process-linked publications we highlight here for head setting and stable infeed. Delivered options follow the quotation.
A: Same published width/speed platform family (TC-180-420), but this page locks the curtain process list and fabric types. Use multi-function (coating-01) for broader industrial PVC/epoxy-style films without a curtain SKU focus.
A: Fabric type, blackout level target, whether flocking/FR/UV are required, heat source, width, and target shift output. Samples of fabric and paste shorten head and dryer design. Call +86 510 83397635 / +86 510 83382635 or email info@xhmachinery.com.
