Even color coating, special hand feel and breathable functional coatings for a wide range of fabrics, compatible with PVC, epoxy and other industrial textile coatings.
| Model / series | TC-180-420 |
|---|---|
| Nominal width | 180-420cm |
| Machine speed | 5-65m/min |
| Typical running speed | 30-40m/min |
| Heat source | thermal oil 90%; natural gas 5%; steam 5% |
| Oven | Configured to customer needs |
| Drive | Horizontal rail chain drive |
| Main power | ≈48KW |
Even color coating, special hand feel and breathable functional coatings for a wide range of fabrics, compatible with PVC, epoxy and other industrial textile coatings.
Published USE: even color coating, special hand-feel and breathable functional coats for a wide fabric range, compatible with PVC, epoxy and other industrial textile coatings.
Typical path: infeed (unwind / accumulate / guide) → coat (pad / knife / combination head per order) → dry & set → optional cool / finish → outfeed (rewind / plait).
Drive on this page is horizontal rail chain—suited to many industrial textile coats. Oven chambers follow the order; heat-source mix on TECH favors thermal oil for this series.
Model TC-180-420: published multi-function platform across a wide width band.
Nominal width 180–420 cm; machine speed 5–65 m/min (50 Hz context on the live FAQ); typical running speed 30–40 m/min. Top speed is a mechanical band—paste weight, dryer length, and function film decide the stable window.
Main power ≈48 KW for the machine frame; external heater load is separate. Confirm substrate, primary function, heat source, and capacity band before locking head and oven layout.
Coating head (publication CN205995710U) and combination coating head (CN205995709U): public texts describe pneumatically adjustable / combination head layouts so knife gaps and changeovers are easier to set. Lifting coating head (CN210847004U) is a related published direction for head lift.
Temperature-control feeding frame (publication CN205995744U): combines tensioning, photoelectric centering, temperature control, and synchronous tracking so cloth enters the head with less twist or wrinkle risk.
Category-level infeed/outfeed patents are summarized on Coating machinery. Exact head and frame on your order follow the quotation. Patent numbers are technical directions only—not present legal-force claims, and not a full 119-item wall.
This page: general color / functional film platform across many substrates.
Curtain (flocked curtain) coater: blackout, FR, insulation, UV, and blackout flocking processes.
Advertising banner coater: PU / PVC / epoxy / silicone on outdoor polyester or fiberglass with published tension and IR glue-stop features.
Pick the dedicated page when the end use is clearly curtain or banner; stay here when you need one platform for mixed industrial coats.
Usually a fit: industrial textiles needing even color or functional films; PVC/epoxy-compatible programs; width inside 180–420 cm; willingness to sample paste and lock dryer length.
Usually another category: carpet tile PVC/bitumen hosts (Carpet); dyeing/printing only with no coat; no substrate or paste data yet demanding locked hydrostatic or abrasion acceptance values.
Multi-function coating machine — whole line and key parts (customer photos).

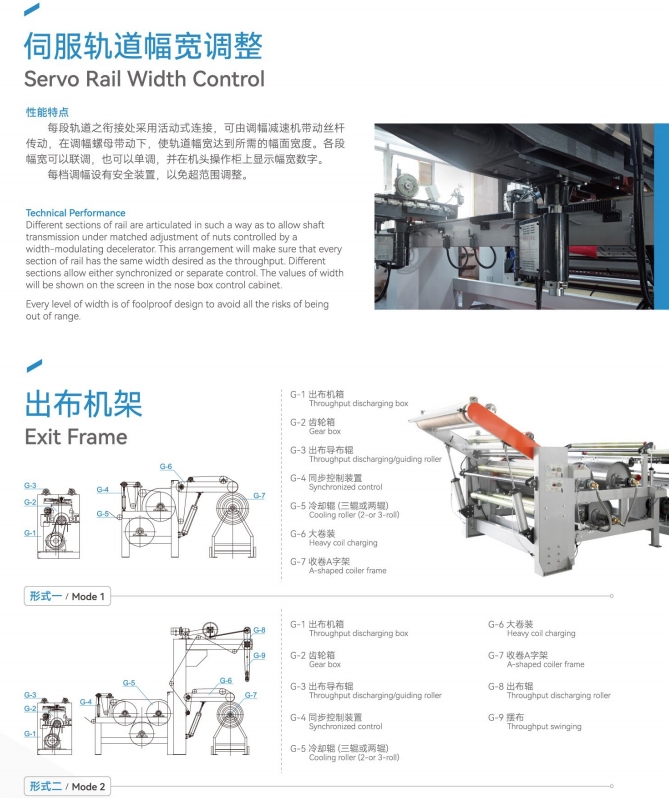

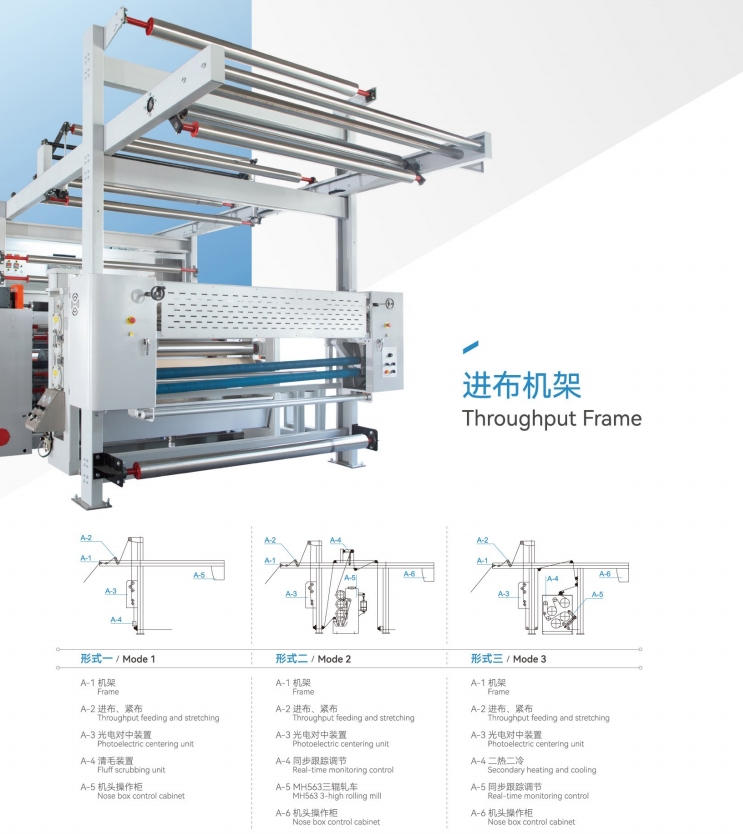

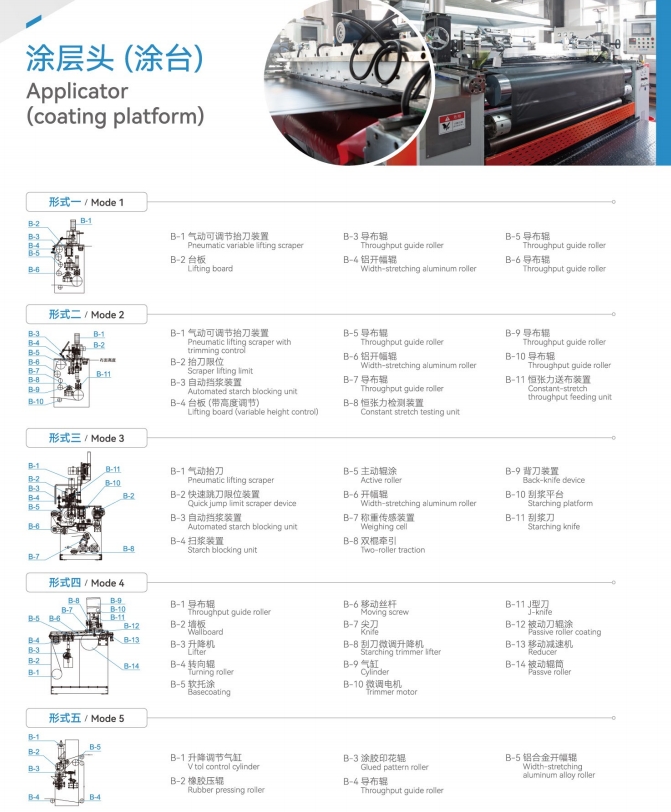

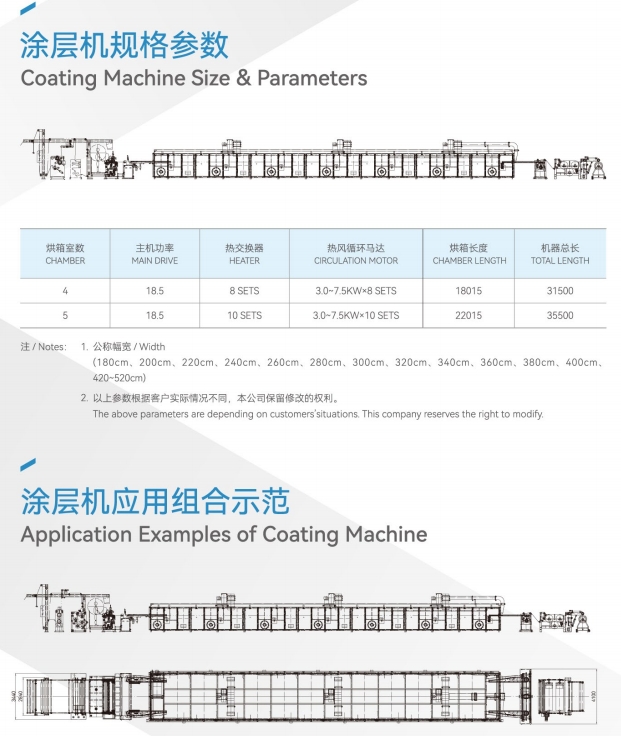

Configuration options and components of the infeed frame, applicator, width control and exit frame (original factory documentation).

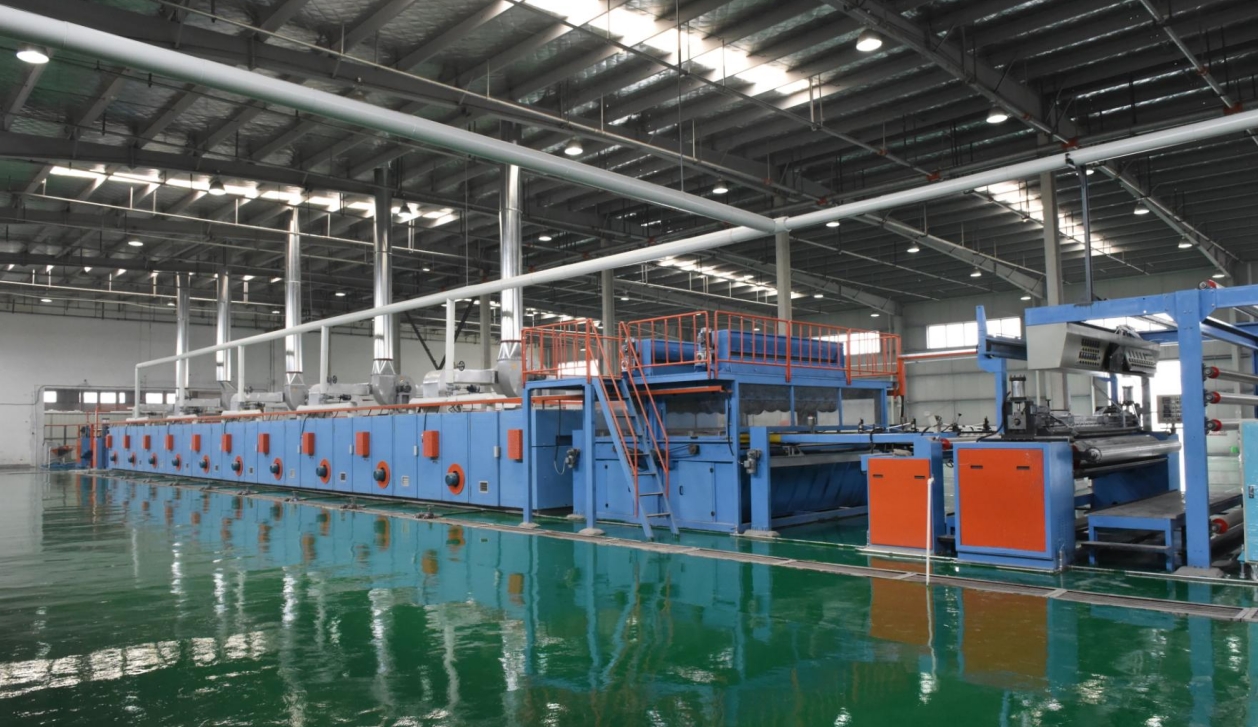

Coating machine developed for blackout curtain fabrics, can also apply flocking - semi-blackout, full blackout, blackout flocking, flame retardant, heat insulation and UV protection finishing.

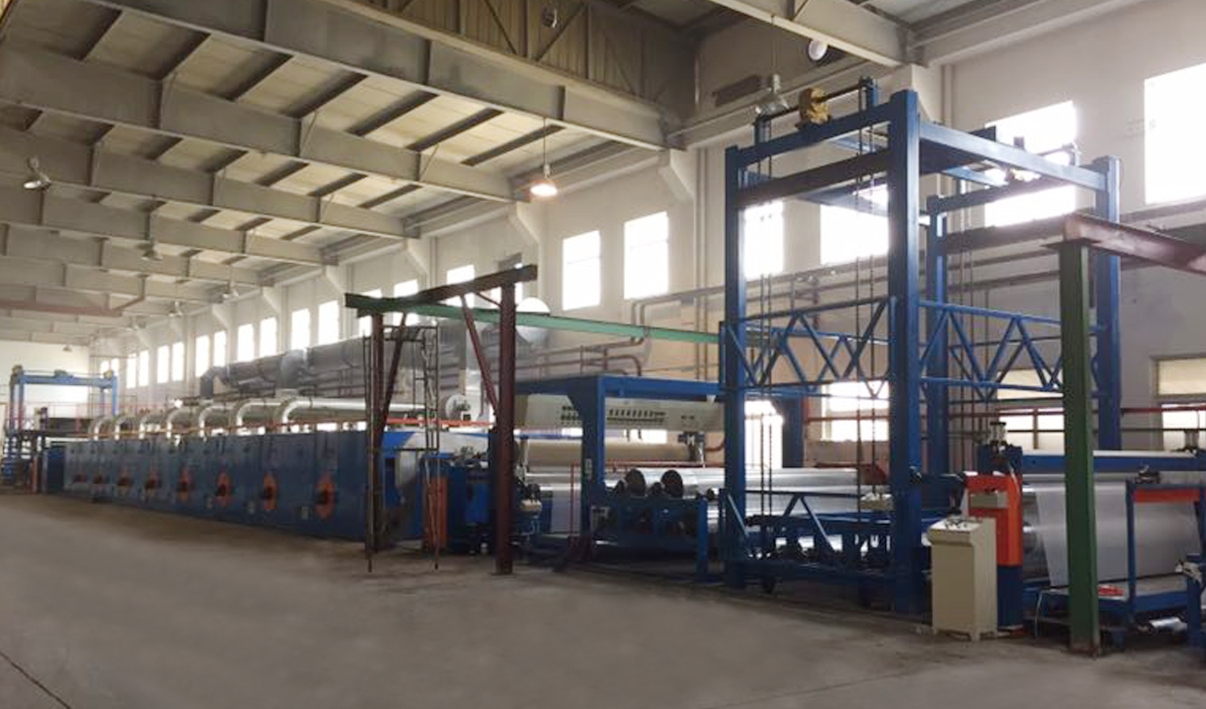

Coating machine for advertising banners - PU, PVC, epoxy and silicone coating on polyester and fiberglass outdoor fabrics for anti-aging, high-temperature resistance and ink-bleed-free high-resolution printing.
A: TECH on this page: model TC-180-420; nominal width 180–420 cm; machine speed 5–65 m/min; typical running speed 30–40 m/min; main power ≈48 KW; horizontal rail-chain drive; heat-source mix thermal oil 90% / natural gas 5% / steam 5%. Full fields are in the TECH table—mechanical max is not a process guarantee for every paste.
A: Public patents CN205995710U / CN205995709U describe coating-head and combination-head directions with adjustable gaps for changeovers. Tell us whether you need pad, knife, or frequent head changes; the quotation locks the head. See also lifting-head direction CN210847004U.
A: Public patent CN205995744U describes an infeed frame with tensioning, photoelectric centering, temperature control, and synchronous tracking to steady cloth into the head. Delivered infeed options follow the order—not every drawing feature by default.
A: No. The published mix shows series tendency (thermal oil heavy on this model). Plant energy and paste temperature window decide the source in the proposal.
A: If the primary SKU is blackout/flocked curtain, use coating-02. If it is outdoor banner with PU/PVC/epoxy/silicone, use coating-03. Mixed industrial coats stay on this multi-function page.
