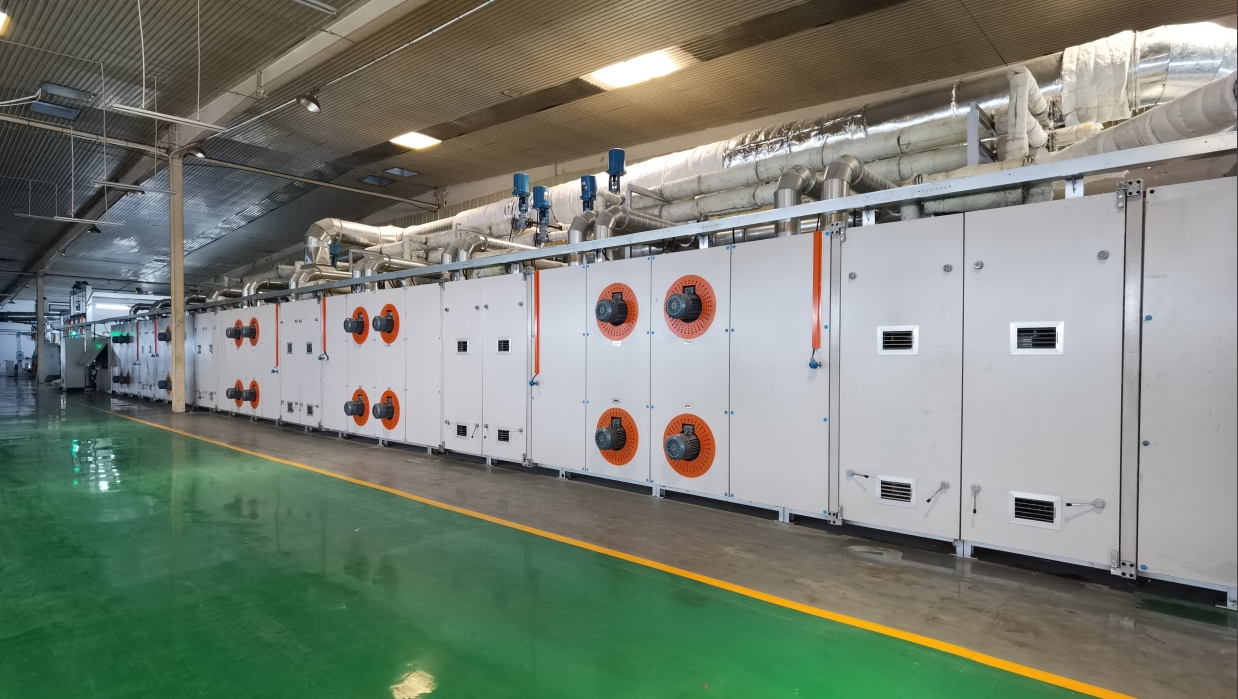

Combined drying oven for carpet backing and lamination of woven and tufted carpets, working width up to 420cm.
| Model / series | FH-330-420 |
|---|---|
| Nominal width | 310-400cm |
| Machine speed | 3-12m/min |
| Typical running speed | 5-6m/min |
| Heat source | thermal oil 15%; natural gas 80%; steam 5% |
| Oven | Configured to customer needs |
| Heat sources | Steam (0.6-1Mpa), thermal oil (600,000 kcal), natural gas direct |
| Oven temperature | Steam 100-145℃, thermal oil 100-180℃ |
Combined drying oven for carpet backing and lamination of woven and tufted carpets, working width up to 420cm.
Published USE: combined drying oven for carpet backing and lamination of woven and tufted carpets, working width up to 420 cm.

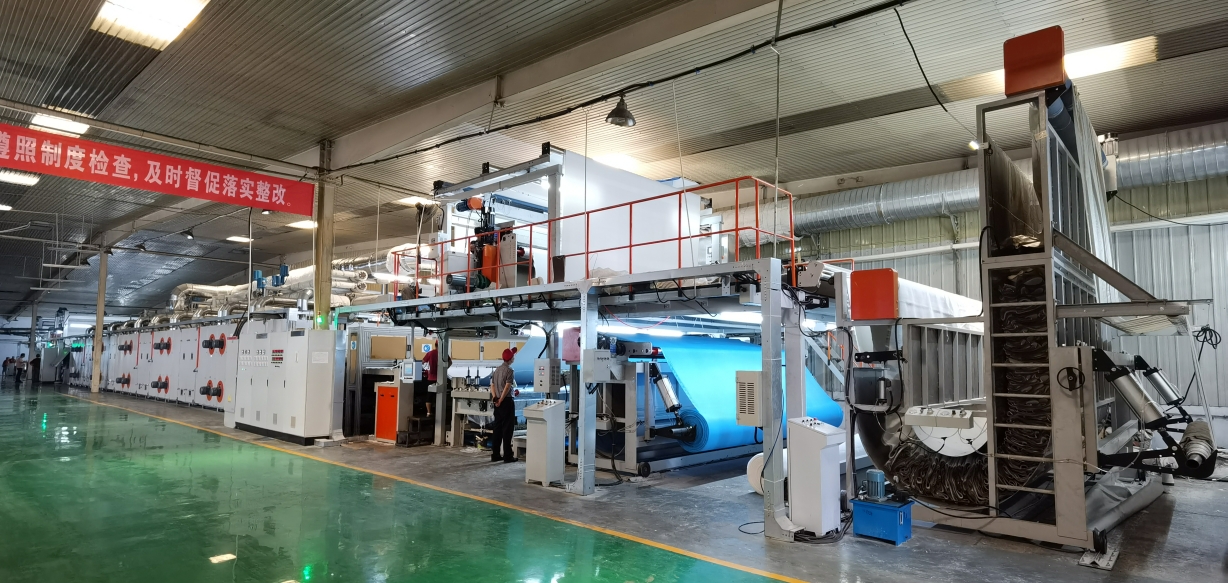

Typical path: coat / laminate upstream → enter combined oven → dry & set under controlled temperature → cool / exit toward rewind or downstream modules. Chamber count and heat source follow the order.
Published oven temperature bands: steam 100–145℃; thermal oil 100–180℃. Heat-source options include steam (0.6–1 MPa), thermal oil (600,000 kcal), and natural gas direct heating.
Model FH-330-420 is the published combined drying / backing oven series for wide woven and tufted carpets.
Nominal width 310–400 cm (USE notes working width up to 420 cm); machine speed 3–12 m/min; typical running speed 5–6 m/min. Paste weight and lamination stack decide the stable window—not the mechanical top alone.
Heat-source mix on TECH (oil 15% / gas 80% / steam 5%) is series tendency. Oven “configured to customer needs” means length and zones are customization cores.
Oven temperature controlling means for carpet manufacture line (publication CN206131698U): public text describes temperature-control direction for carpet-line ovens.
Carpet oven (publication CN206131638U): published carpet-oven structure direction.
Baking oven quickly cooling device (publication CN206843777U): quick-cool direction after heat—useful when backing must stabilize before wind-up. Patent notes are technical directions only—not present legal-force claims. See also Carpet machinery.
This page: wide woven/tufted backing + lamination combined drying oven (up to ~420 cm class).
Woven carpet coating / laminating: Axminster/Wilton full process line (centering through folding) with published 2×4 m oven sections.
Artificial grass backing: grass-specific backing / drying / setting on FH-420/520 widths.
Usually a fit: woven or tufted carpet backing/lamination needing a wide combined oven; width in the published 310–400 cm nominal band (up to 420 cm working as USE); willingness to lock heat source and chambers with samples.
Usually another page: carpet tile PVC/bitumen hosts (carpet-01 / carpet-02); artificial grass primary (carpet-08); vinyl floor plastication (carpet-12).
Production line for PVC carpet tiles - backing coating, plastication and automatic cutting for tufted or needle-punched, nylon or polypropylene carpets, producing 50x50, 50x100, 25x100, 100x100 and polygonal tiles.
Production line for bitumen / TPO carpet tiles - back coating with bitumen/TPO, backing, cooling and automatic cutting for tufted or needle-punched carpets, available in slitting or fully automatic continuous production.
A: TECH: model FH-330-420; nominal width 310–400 cm; machine speed 3–12 m/min; typical running speed 5–6 m/min; heat mix oil 15% / gas 80% / steam 5%; oven configured. USE notes working width up to 420 cm. Oven bands: steam 100–145℃, thermal oil 100–180℃.
A: Steam (0.6–1 MPa), thermal oil (600,000 kcal), and natural gas direct heating appear on this page. The percentage mix is series tendency—not a forced fuel choice.
A: Public CN206131698U (oven temperature control for carpet lines), CN206131638U (carpet oven), and CN206843777U (oven quick-cool device). Delivered chambers and cool sections follow the quotation.
A: carpet-06 publishes a full woven coating/laminating process chain (centering through folding) with FH-420 and 2×4 m oven sections. This page is the combined drying oven host for woven/tufted backing and lamination at wide width.
A: Carpet construction (woven/tufted), backing chemistry, width, heat source, target speed, and whether lamination is same-line. Samples shorten oven design. Call +86 510 83397635 / +86 510 83382635 or email info@xhmachinery.com.
A: Yes. Xinghua custom-builds to your process. Machines run in 20+ countries; installation, operator training, and lifetime technical support are available under contract.
