High-performance coating machine for tarpaulins - coated fabric gains flame retardancy and weather resistance for demanding outdoor applications.
| Model / series | TC-180-420 |
|---|---|
| Nominal width | 180-420cm |
| Machine speed | 5-65m/min |
| Typical running speed | 30-40m/min |
| Heat source | thermal oil 90%; natural gas 5%; steam 5% |
| Oven | Configured to customer needs |
| Applications | Transport (truck covers, vehicle tarpaulins) |
| Functions | Flame retardancy, weather resistance |
| Uses | Advertising, architectural decoration, industrial infrastructure |
High-performance coating machine for tarpaulins - coated fabric gains flame retardancy and weather resistance for demanding outdoor applications.
Published USE: high-performance coating for tarpaulins—coated fabric gains flame retardancy and weather resistance for demanding outdoor applications.
Applications: transport (truck covers, vehicle tarpaulins); also advertising, architectural decoration and industrial infrastructure as listed.

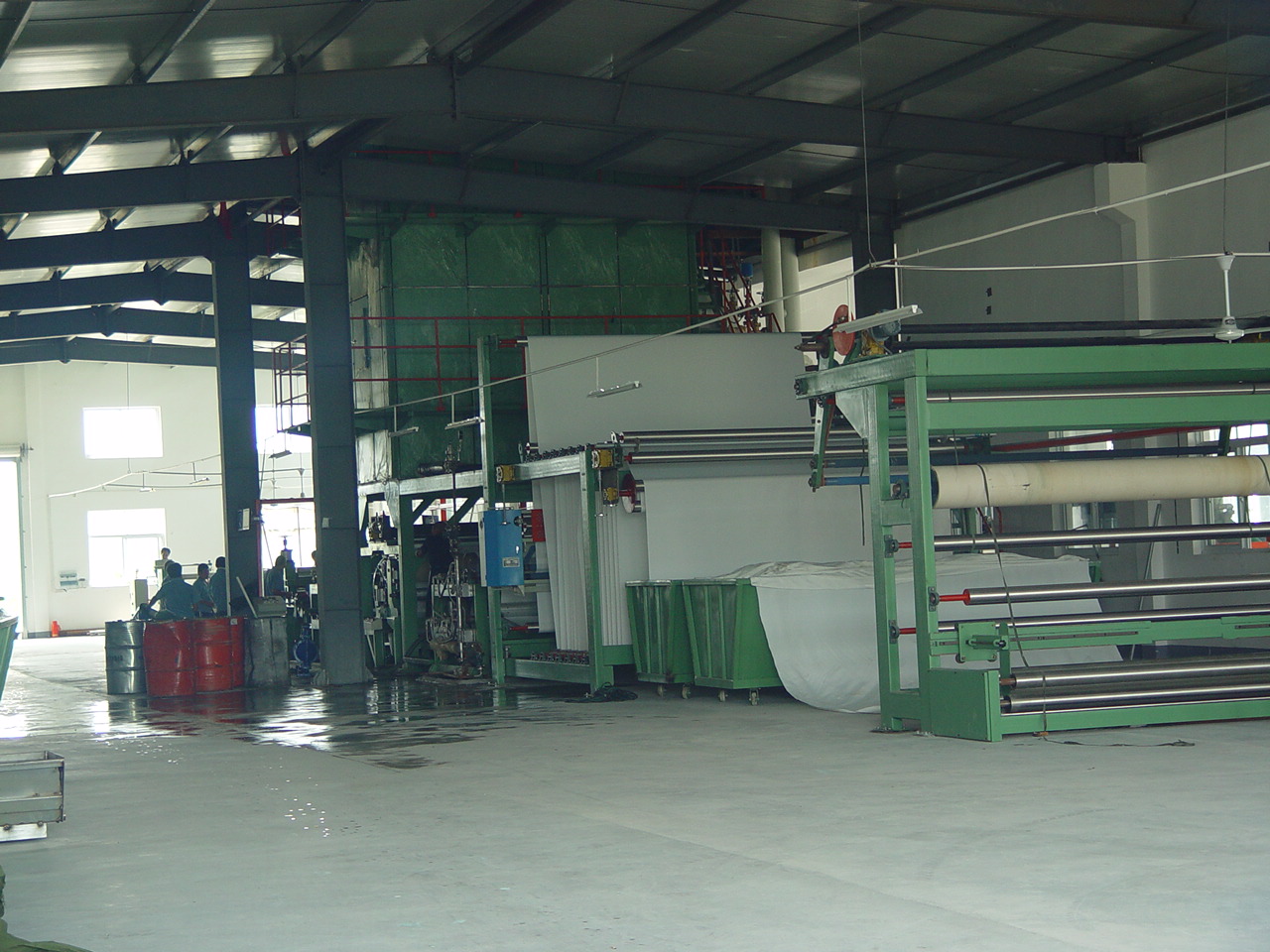

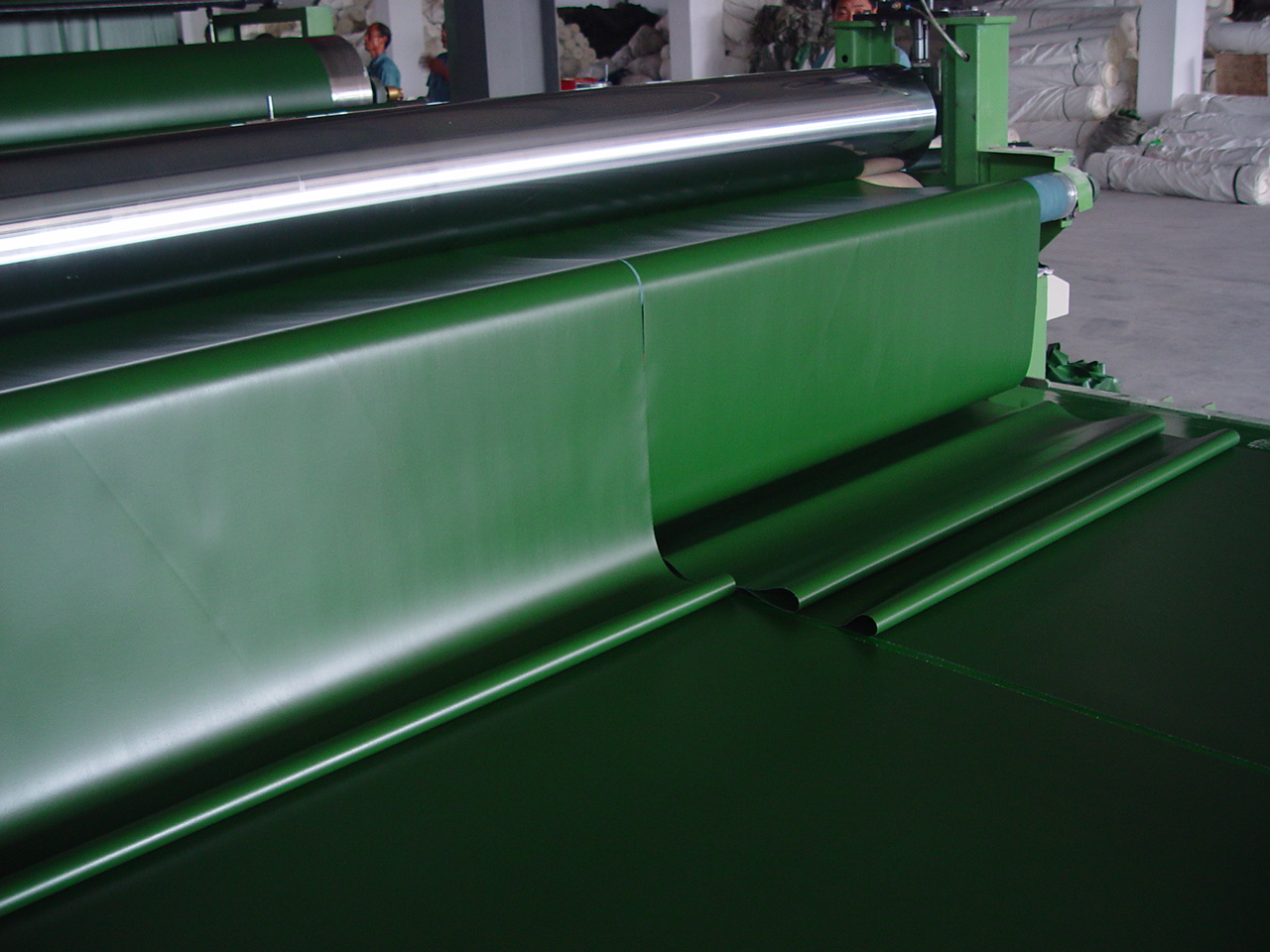

Typical path: unwind → coat → dry & set → cool → rewind. FR packages and outdoor weather films need dryer length and coat weight locked together—do not promise mechanical top speed as FR cure speed.
If FR and print-face weather coats share one plant, say whether they share one head/dryer or need staged changeovers—same TC platform, different paste windows.
Model TC-180-420 platform family; this page specializes tarpaulin / outdoor cover USE.
Nominal width 180–420 cm; machine speed 5–65 m/min; typical running speed 30–40 m/min.
Heat mix oil 90% / gas 5% / steam 5%; oven configured to customer needs.
Coating head (CN205995710U): adjustable head for FR / weather paste changeovers.
Temperature-control feeding frame (CN205995744U): stable tension and centering into the head for wide outdoor greige.
Lifting coating head (CN210847004U) optional related direction. See Coating machinery. Patent notes are technical directions only.
This page: FR and weather-resistant covers for transport and outdoor infrastructure.
Banner: print-ready outdoor chemistries and ink-bleed control.
Conveyor belt: abrasion / anti-stick / antistatic / high-temp / anti-corrosion on belt substrates with PU/PVC/rubber/epoxy.
Name substrate, FR standard target (as customer requirement—not invented here), weather exposure, chemistry, width, heat source, and shift output.
Related: banner when print-ready outdoor film is primary; conveyor belt when the substrate is industrial belt, not cover fabric.
Usually a fit: truck covers, vehicle tarpaulins, and outdoor architectural / industrial covers needing FR and weather resistance; width inside 180–420 cm.
Usually another page: banner print focus (coating-03); luggage oxford (coating-04); carpet tile hosts (Carpet).
Even color coating, special hand feel and breathable functional coatings for a wide range of fabrics, compatible with PVC, epoxy and other industrial textile coatings.
Coating machine developed for blackout curtain fabrics, can also apply flocking - semi-blackout, full blackout, blackout flocking, flame retardant, heat insulation and UV protection finishing.
A: TECH: TC-180-420; nominal width 180–420 cm; machine speed 5–65 m/min; typical running speed 30–40 m/min; heat mix oil 90% / gas 5% / steam 5%; oven configured. Functions: flame retardancy, weather resistance.
A: Transport (truck covers, vehicle tarpaulins); advertising, architectural decoration, and industrial infrastructure—as published on this page.
A: Public CN205995710U (coating head), CN205995744U (temp-control feeding frame); optional CN210847004U (lifting head). Delivered options follow the quotation.
A: Same platform family. Banner (coating-03) emphasizes print-ready chemistries; this page emphasizes FR and weather resistance for covers. Tell us which is primary SKU.
A: Substrate, FR/weather targets, chemistry, width, heat source, and output. Samples shorten head and dryer design. Call +86 510 83397635 / +86 510 83382635 or email info@xhmachinery.com.
A: Yes. Xinghua custom-builds to your process. Machines run in 20+ countries; installation, operator training, and lifetime technical support are available under contract.
