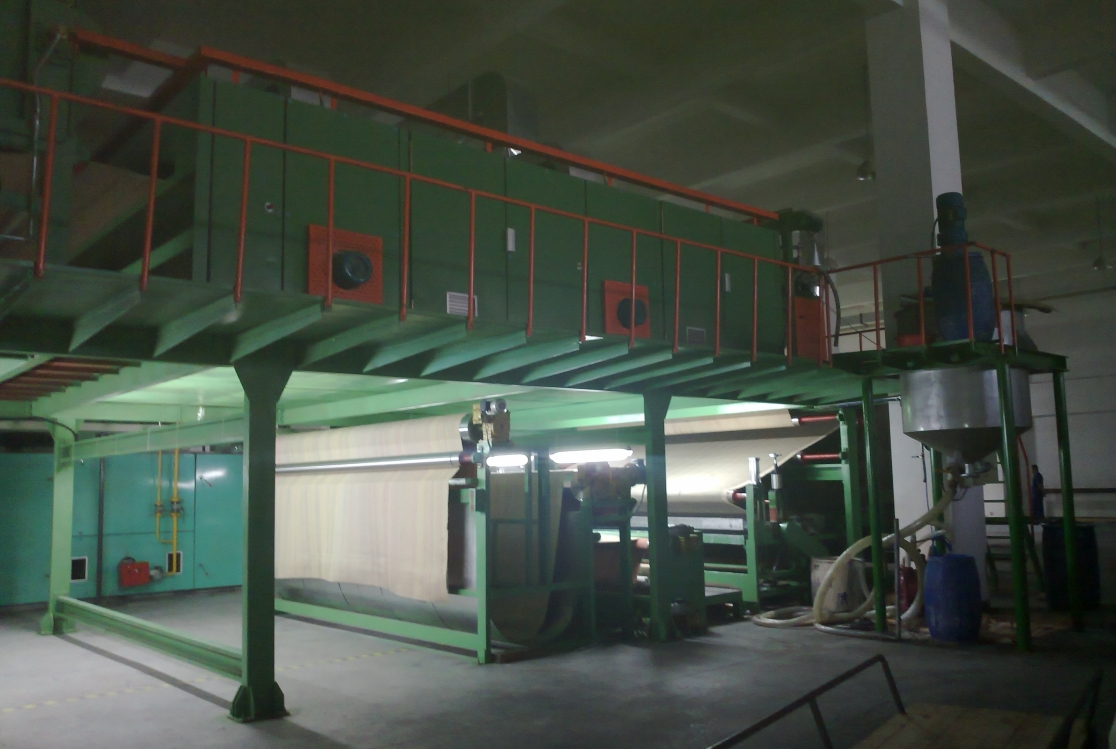

Coating and laminating line for woven carpets (Axminster, Wilton) - centering, pulling, storage, brushing, constant tension, moistening, coating, drying, moisture exhaust, 3-proof treatment, cooling and folding in one line.
| Model / series | FH-420 |
|---|---|
| Nominal width | 400cm |
| Machine speed | 1-5m/min |
| Typical running speed | 1-6m/min |
| Heat source | steam |
| Oven | 2 sections × 4米 |
| Main power | ≈50KW |
| Drive | VFD constant tension control (oven carrier rollers) |
| Heat sources | Steam, thermal oil, natural gas direct |
| Heating temperature | Steam 100-145℃, thermal oil 100-180℃ |
| Cooling temperature | 20-60℃ automatic cooling |
| Hand | Left / right hand drive |
Coating and laminating line for woven carpets (Axminster, Wilton) - centering, pulling, storage, brushing, constant tension, moistening, coating, drying, moisture exhaust, 3-proof treatment, cooling and folding in one line.
Published USE: coating and laminating for woven carpets (Axminster, Wilton)—centering, pulling, storage, brushing, constant tension, moistening, coating, drying, moisture exhaust, 3-proof treatment, cooling and folding in one line.
Oven on TECH: 2 sections × 4 m. Drive: VFD constant tension control with oven carrier rollers. Cooling: 20–60℃ automatic. Left / right hand drive optional.
Slow published speed band matches heavy woven constructions—do not import tile-line or apparel speeds into this inquiry.
Model FH-420; nominal width 400 cm (Key Advantages also note 420 cm class / effective max 410 cm context on page—use TECH nominal 400 cm for quoting unless the contract widens it).
Machine speed 1–5 m/min; typical running speed 1–6 m/min; main power ≈50 KW. Heat source line on TECH lists steam; heat-source options also include thermal oil and natural gas direct, with published heating bands steam 100–145℃ / thermal oil 100–180℃.
Confirm Axminster vs Wilton, secondary backing, and 3-proof need before locking moistening and oven exhaust.
Double-sided gluing device for carpet fabric (publication CN217250268U): public text describes double-sided gluing direction relevant to woven backing/lamination coats.
Roller laminating device with pressing structure (publication CN214919218U): laminating / pressing direction for secondary backing join.
Carpet manufacture material centering rectification (publication CN206601100U): centering/correction direction matching the published centering step. Patent notes are technical directions only. See Carpet machinery.
List which published steps you need: centering, pulling, storage, brushing, constant tension, moistening, coating, drying, moisture exhaust, 3-proof, cooling, folding.
Related: combined drying oven when oven/host is the primary ask; artificial grass for grass—not Axminster/Wilton woven.
Usually a fit: Axminster or Wilton woven coating/laminating programs needing the published one-line chain; width around the FH-420 / 400 cm nominal; acceptance of the slow 1–5 m/min band.
Usually another page: carpet tile PVC/bitumen (carpet-01 / carpet-02); artificial grass (carpet-08); vinyl floor (carpet-12).
Production line for PVC carpet tiles - backing coating, plastication and automatic cutting for tufted or needle-punched, nylon or polypropylene carpets, producing 50x50, 50x100, 25x100, 100x100 and polygonal tiles.
Production line for bitumen / TPO carpet tiles - back coating with bitumen/TPO, backing, cooling and automatic cutting for tufted or needle-punched carpets, available in slitting or fully automatic continuous production.
A: TECH: model FH-420; nominal width 400 cm; machine speed 1–5 m/min; typical running speed 1–6 m/min; heat source steam (options also list thermal oil / natural gas); oven 2 sections × 4 m; main power ≈50 KW; cooling 20–60℃ automatic. Full fields are in the TECH table.
A: Axminster and Wilton. Steps published: centering, pulling, storage, brushing, constant tension, moistening, coating, drying, moisture exhaust, 3-proof treatment, cooling and folding.
A: Public CN217250268U (double-sided gluing), CN214919218U (roller laminating with pressing), CN206601100U (centering rectification). Delivered modules follow the quotation—not every drawing feature by default.
A: Heavy woven Axminster/Wilton constructions need time for coat, dry, and laminate. The published 1–5 m/min mechanical band (typical 1–6) is intentional—do not use tile or coating-platform speeds as a target.
A: Axminster vs Wilton, secondary backing, 3-proof need, width, heat source, hand (L/R), and output. Samples shorten head and oven design. Call +86 510 83397635 / +86 510 83382635 or email info@xhmachinery.com.
A: Yes. Xinghua custom-builds to your process. Machines run in 20+ countries; installation, operator training, and lifetime technical support are available under contract.
