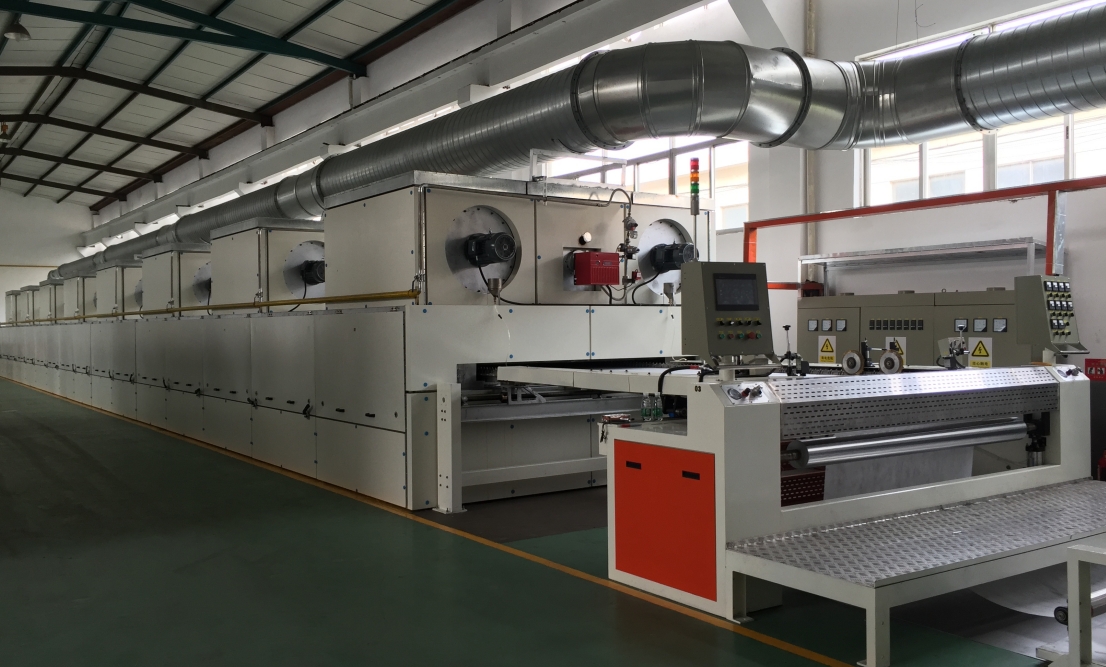

Coating machine for PP spunbond, meltblown, spunlace and needle-punched nonwovens - waterproof, flame retardant, antibacterial, antistatic coatings, breathable films (PE, PU), hot melt adhesive (HM) and UV-curable coatings.
| Model / series | TC-180-420 |
|---|---|
| Nominal width | 180-420cm |
| Machine speed | 5-65m/min |
| Typical running speed | 30-40m/min |
| Heat source | thermal oil 90%; natural gas 5%; steam 5% |
| Oven | Configured to customer needs |
| Materials | PP spunbond, meltblown, spunlace, needle-punched nonwovens |
| Coating types | Waterproof, FR, antibacterial, antistatic, breathable film (PE/PU), HM, UV-curable |
| Applications | Medical, hygiene, filtration, packaging, automotive interiors |
Coating machine for PP spunbond, meltblown, spunlace and needle-punched nonwovens - waterproof, flame retardant, antibacterial, antistatic coatings, breathable films (PE, PU), hot melt adhesive (HM) and UV-curable coatings.
Published USE: coating for PP spunbond, meltblown, spunlace and needle-punched nonwovens—waterproof, flame retardant, antibacterial, antistatic coatings, breathable films (PE, PU), hot melt adhesive (HM) and UV-curable coatings.
Applications: medical, hygiene, filtration, packaging, automotive interiors.
Typical path: unwind → coat / laminate film or HM → dry / UV cure as ordered → cool → rewind. Soft nonwovens need careful tension; film and UV routes change dryer and energy layout—name the primary chemistry early.
When waterproof, FR, and film/HM routes share one inquiry, rank the primary chemistry—dryer, UV, and tension layout follow that rank, not a generic “all types at once” assumption.
Model TC-180-420 platform family; this page specializes nonwoven materials and coating types.
Nominal width 180–420 cm; machine speed 5–65 m/min; typical running speed 30–40 m/min. Lightweight webs and UV/HM packages often run below mechanical max once tension and cure are locked.
Heat mix oil 90% / gas 5% / steam 5%; oven configured—UV modules, if required, are proposal items, not assumed from the heat-mix line alone.
Coating head (CN205995710U) and combination coating head (CN205995709U): support chemistry changeovers across waterproof / FR / film / HM style inquiries.
Temperature-control feeding frame (CN205995744U): tensioning and centering for soft nonwoven webs into the head.
See Coating machinery. Patent notes are technical directions only.
This page: nonwoven-specific materials and coating-type list (including breathable film, HM, UV-curable).
Multi-function: broader industrial textile films without nonwoven SKU focus.
Mesh: woven/knit mesh yarn-lock—not spunbond/meltblown webs.
Usually a fit: PP spunbond, meltblown, spunlace or needle-punched programs needing the published coating types; width inside 180–420 cm; willingness to sample web and chemistry.
Usually another page: woven luggage oxford (coating-04); carpet backing (Carpet); heat-set only without coat (stenter-03).
Even color coating, special hand feel and breathable functional coatings for a wide range of fabrics, compatible with PVC, epoxy and other industrial textile coatings.
Coating machine developed for blackout curtain fabrics, can also apply flocking - semi-blackout, full blackout, blackout flocking, flame retardant, heat insulation and UV protection finishing.
A: TECH: TC-180-420; nominal width 180–420 cm; machine speed 5–65 m/min; typical running speed 30–40 m/min; heat mix oil 90% / gas 5% / steam 5%; oven configured. Materials and coating types are listed in the TECH table on this page.
A: Waterproof, FR, antibacterial, antistatic, breathable film (PE/PU), hot melt adhesive (HM), and UV-curable—as published. Name the primary type; UV or film modules are proposal items.
A: Public CN205995710U / CN205995709U (coating / combination heads) and CN205995744U (temp-control feeding frame). Delivered options follow the quotation.
A: Same platform family. This page locks nonwoven materials and the expanded coating-type list. Use coating-01 for mixed industrial woven/knit films without a nonwoven focus.
A: Web type/weight, coating type (incl. film/HM/UV if any), width, heat/UV energy, and output. Samples shorten head and dryer/UV design. Call +86 510 83397635 / +86 510 83382635 or email info@xhmachinery.com.
A: Yes. Xinghua custom-builds to your process. Machines run in 20+ countries; installation, operator training, and lifetime technical support are available under contract.
