Coating production line for vinyl flooring - thermal oil heating 200-230℃, complete line for coating, plastication and cooling.
| Model / series | TS-220/360 |
|---|---|
| Nominal width | 200-340cm |
| Machine speed | 2-12m/min |
| Typical running speed | 5-6m/min |
| Heat source | thermal oil 15%; natural gas 80%; steam 5% |
| Oven | Configured to customer needs |
| Main power | ≈100KW |
Coating production line for vinyl flooring - thermal oil heating 200-230℃, complete line for coating, plastication and cooling.
Published USE: coating production line for vinyl flooring—thermal oil heating 200–230℃, complete line for coating, plastication and cooling.
Typical path: infeed → coat → plastication oven → cool → rewind / downstream cut as ordered. The published 200–230℃ thermal-oil heating window is specific to this vinyl floor USE—do not confuse it with lower carpet-backing oven bands on other pages.
Oven configured to customer needs; main power ≈100 KW on TECH (machine frame—external heater load is separate on the electrical list).
Model TS-220/360; nominal width 200–340 cm; machine speed 2–12 m/min; typical running speed 5–6 m/min.
Heat-source mix oil 15% / gas 80% / steam 5% shows series tendency; USE highlights thermal-oil heating at 200–230℃ for plastication. Match plant energy and PVC recipe before locking chambers.
Confirm layer structure, coat weight, and target plastication before promising top mechanical speed.
PVC blanket-belt plasticizing oven (publication CN214521400U) and direct-fired PVC-line plasticizing oven (publication CN208392450U): public texts describe plasticizing-oven directions for PVC backing / plastication—process-adjacent to vinyl floor coating and plastication.
Heating roller with accurate temperature regulation (publication CN220915446U): published roll-temperature direction useful when heated rolls are part of the proposal.
Delivered heat source and chambers follow TECH and the contract. Patent notes are technical directions only. Related tile PVC host: carpet-01. Category: Carpet machinery.
This page: vinyl floor coating + plastication + cooling (TS-220/360; USE 200–230℃ thermal oil).
PVC carpet tile line: tile PVC backing → plasticize → cut (FH-220 tile formats).
Conveyor-belt coater: belt functional coats on TC-180-420—not floor plastication.

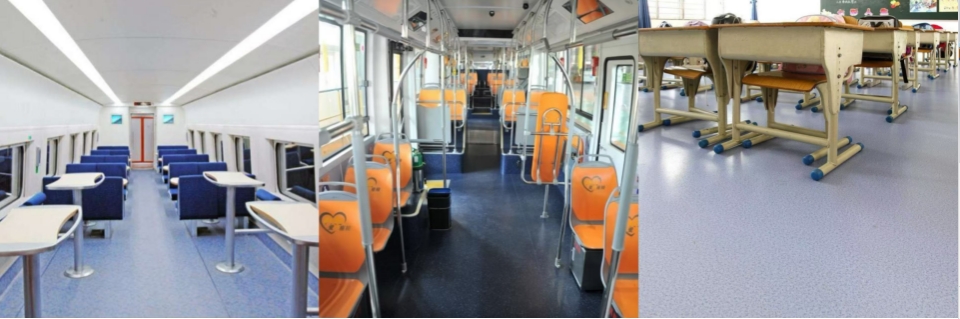

Usually a fit: vinyl flooring programs needing coating, plastication and cooling in one line; width inside 200–340 cm; willingness to sample PVC recipe at the published 200–230℃ thermal-oil window.
Usually another page: carpet tile cutting hosts (carpet-01/02/11); artificial grass (carpet-08); general industrial coating without floor plastication (coating category).
Production line for PVC carpet tiles - backing coating, plastication and automatic cutting for tufted or needle-punched, nylon or polypropylene carpets, producing 50x50, 50x100, 25x100, 100x100 and polygonal tiles.
Production line for bitumen / TPO carpet tiles - back coating with bitumen/TPO, backing, cooling and automatic cutting for tufted or needle-punched carpets, available in slitting or fully automatic continuous production.
A: TECH: model TS-220/360; nominal width 200–340 cm; machine speed 2–12 m/min; typical running speed 5–6 m/min; heat mix oil 15% / gas 80% / steam 5%; oven configured; main power ≈100 KW. USE: thermal oil heating 200–230℃; coating, plastication and cooling.
A: It is published in USE for this vinyl floor plastication route. Other carpet pages use different oven bands—do not mix them. Confirm recipe and heater design in the proposal.
A: Public CN214521400U and CN208392450U describe PVC plasticizing-oven directions; CN220915446U covers accurate temperature regulation on heating rollers. Your chambers, fuel, and length still follow TECH “configured to customer needs” and the contract.
A: carpet-01 is a PVC carpet-tile host (coat → plasticize → cut tiles). This page is a vinyl floor coating / plastication / cooling line on TS-220/360 without the tile-cutting TECH set.
A: Layer structure, PVC/paste data, width, heat source, target plastication window, and output. Samples shorten oven and cool design. Call +86 510 83397635 / +86 510 83382635 or email info@xhmachinery.com.
A: Yes. Xinghua custom-builds to your process. Machines run in 20+ countries; installation, operator training, and lifetime technical support are available under contract.
