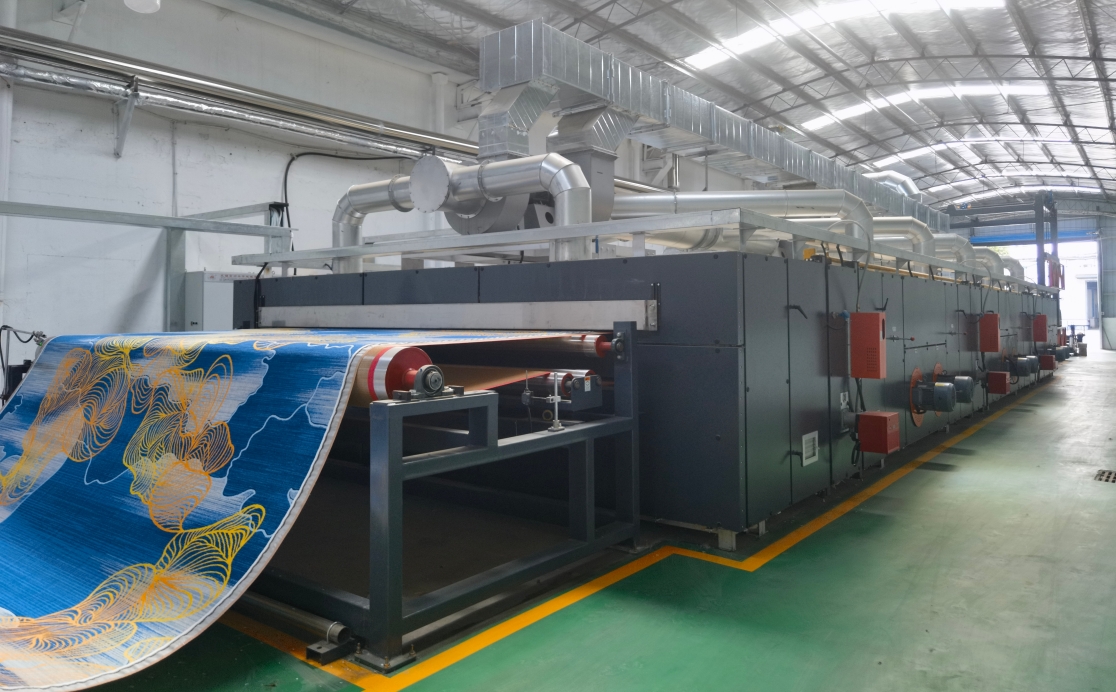

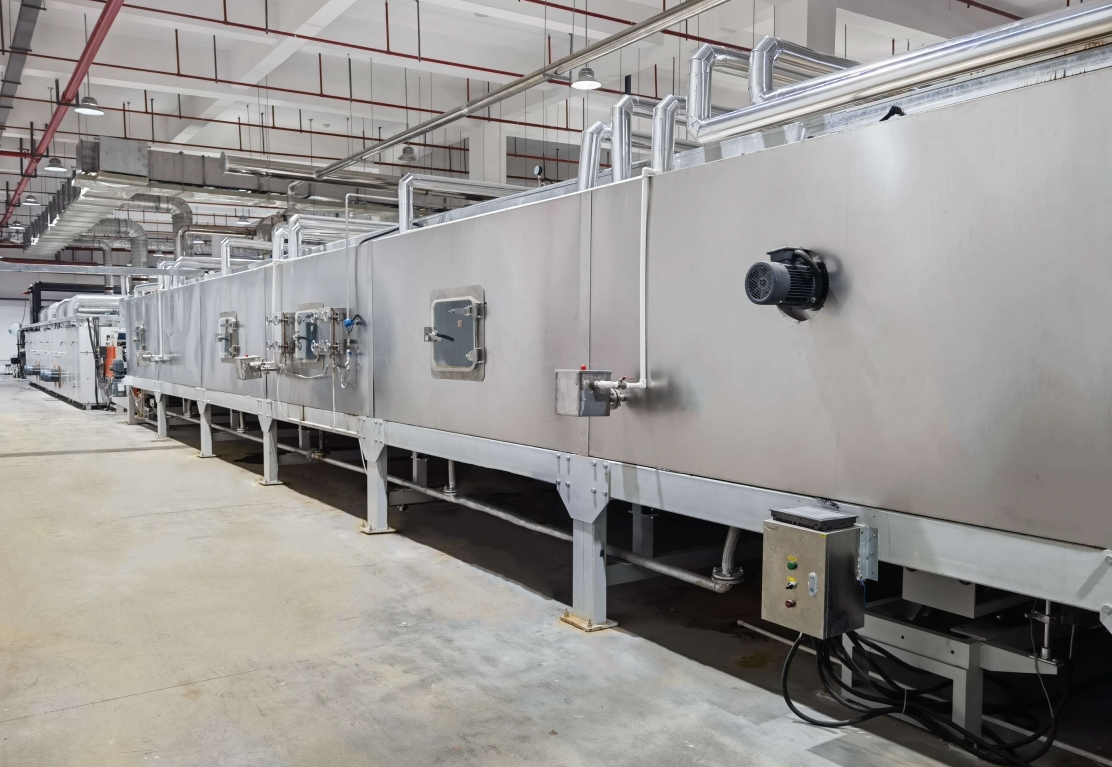

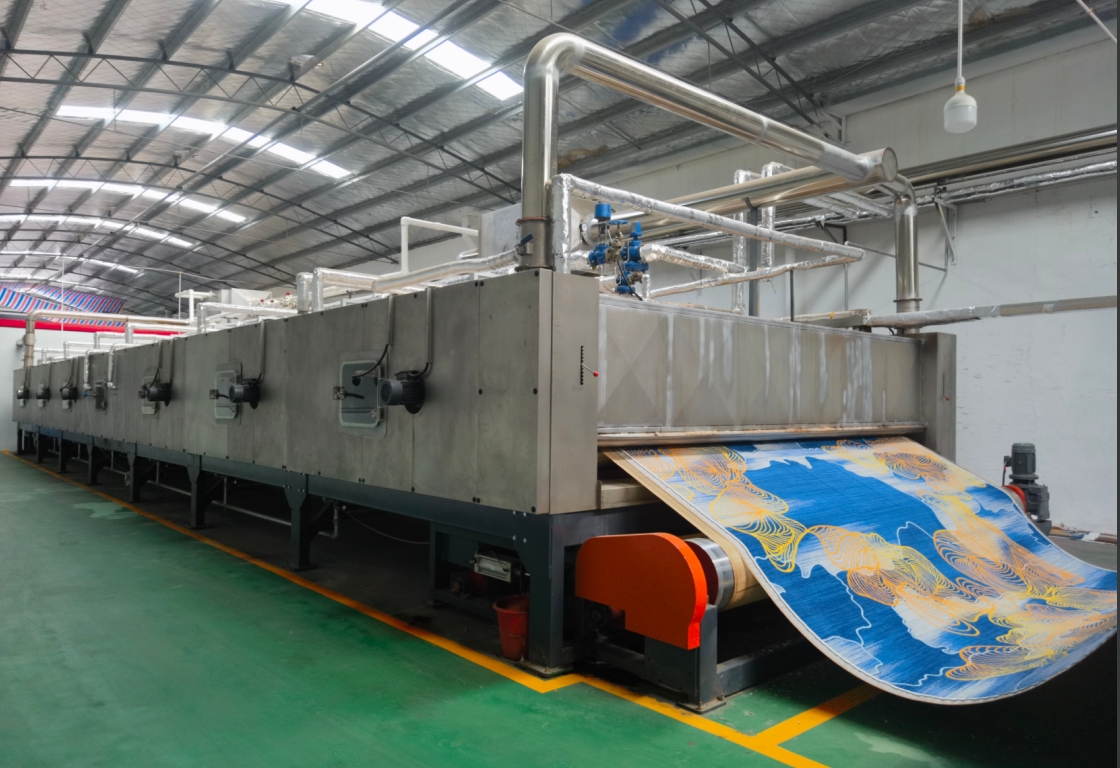

Printing and finishing line for woven and tufted carpets - unrolling, seaming, pile conditioning, pre-steaming, guiding, synchronized conveying, printing, steaming, washing, 3-proof treatment, drying and reeling in one line.
| Model / series | FH-220-420 |
|---|---|
| Nominal width | 200-400cm |
| Machine speed | 1-8m/min |
| Typical running speed | 2-3m/min |
| Heat source | thermal oil 15%; natural gas 80%; steam 5% |
| Oven | Configured to customer needs |
| Processes | Unrolling, seaming, pile conditioning, pre-steaming, guiding, synchronized conveying, printing, steaming, washing, 3-proof, drying, reeling |
Printing and finishing line for woven and tufted carpets - unrolling, seaming, pile conditioning, pre-steaming, guiding, synchronized conveying, printing, steaming, washing, 3-proof treatment, drying and reeling in one line.
Published USE: printing and finishing for woven and tufted carpets—unrolling, seaming, pile conditioning, pre-steaming, guiding, synchronized conveying, printing, steaming, washing, 3-proof treatment, drying and reeling in one line.
Typical path: unroll / seam → pile condition → pre-steam → guide & sync convey → print → steam → wash → optional 3-proof → dry → reel. Chamber count, steamer and wash modules follow the order.
Heat-source mix on TECH favors natural gas for this series; oven is configured to customer needs. Slow typical running speed (2–3 m/min) matches print/steam/wash dwell—do not import tile or apparel coater speeds.
Model FH-220-420 is the published printing & finishing series. Nominal width on TECH is 200–400 cm (Key Advantages may still show a 220–420 cm marketing band—quote the TECH table for proposals).
Machine speed 1–8 m/min; typical running speed 2–3 m/min. Top speed is a mechanical band—print paste, steamer length, and wash/dry balance usually set the stable window below max.
Confirm woven vs tufted, print method, 3-proof need, heat source, and shift output before locking steamer and dryer layout.
Cold transfer device of stamp (publication CN208411063U): public text describes a cold-transfer direction for print processes—useful when print/cool handling is part of the finishing chain.
Carpet steam-ager drip-proof device (utility model CN206186528U; related invention grant CN108001040B): public texts describe drip-proof arrangements on carpet steam agers—relevant to the published steaming step.
Overfeeding feeding device for carpet (publication CN217126413U) is a related published infeed direction when overfeed is quoted. Patent notes are technical directions only—not present legal-force claims. Category: Carpet machinery.
This page: woven/tufted print + finish chain (print → steam → wash → 3-proof → dry) on FH-220-420.
Woven carpet coating / laminating: Axminster/Wilton coat/laminate chain—not a print steamer line.
Combined drying oven: backing/lamination oven host without the print/steam/wash sequence.
Usually a fit: woven or tufted carpets needing print and wet finishing in one inquiry; width inside TECH 200–400 cm; acceptance of the slow 2–3 m/min typical band; willingness to sample paste and lock steamer/dryer length.
Usually another page: tile PVC/bitumen hosts (carpet-01 / carpet-02); artificial grass backing (carpet-08); coat-only without print (carpet-06 / coating category).
Production line for PVC carpet tiles - backing coating, plastication and automatic cutting for tufted or needle-punched, nylon or polypropylene carpets, producing 50x50, 50x100, 25x100, 100x100 and polygonal tiles.
Production line for bitumen / TPO carpet tiles - back coating with bitumen/TPO, backing, cooling and automatic cutting for tufted or needle-punched carpets, available in slitting or fully automatic continuous production.
A: TECH on this page: model FH-220-420; nominal width 200–400 cm; machine speed 1–8 m/min; typical running speed 2–3 m/min; heat mix thermal oil 15% / natural gas 80% / steam 5%; oven configured to customer needs. Full fields are in the TECH table—mechanical max is not a process guarantee for every print paste.
A: Unrolling, seaming, pile conditioning, pre-steaming, guiding, synchronized conveying, printing, steaming, washing, 3-proof treatment, drying and reeling—for woven and tufted carpets.
A: Public CN208411063U describes a stamp cold-transfer direction; CN206186528U / CN108001040B describe drip-proof directions on carpet steam agers. Delivered print and steam modules follow the quotation—not every drawing feature by default.
A: carpet-06 is coating/laminating for woven carpets. This page is printing and wet finishing (print → steam → wash → 3-proof → dry). Pick by whether print or secondary backing is the primary ask.
A: Woven vs tufted, print method and paste, 3-proof need, greige/finished width, heat source, and shift output. Samples shorten steamer and dryer design. Call +86 510 83397635 / +86 510 83382635 or email info@xhmachinery.com.
A: Yes. Xinghua custom-builds to your process. Machines run in 20+ countries; installation, operator training, and lifetime technical support are available under contract.
