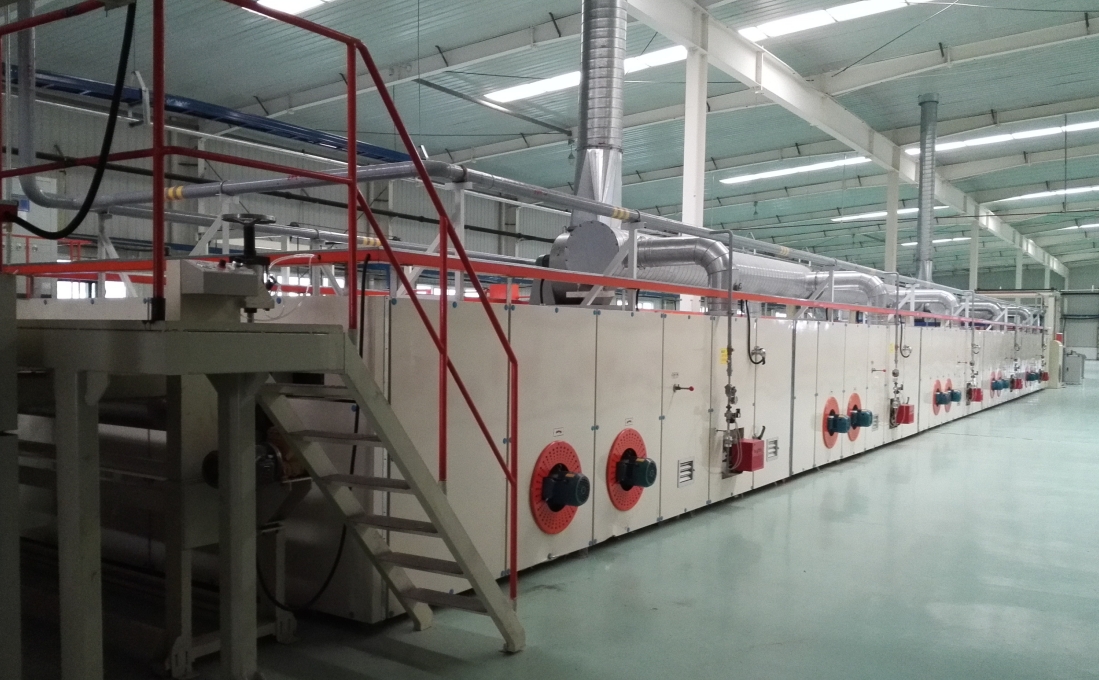

High-temperature glue setting machine for nonwovens, widely used in automotive interiors, filter materials and industrial textiles.
| Model / series | FH-220-420 |
|---|---|
| Nominal width | 200-400cm |
| Machine speed | 3-12m/min |
| Typical running speed | 5-8m/min |
| Heat source | thermal oil 15%; natural gas 80%; steam 5% |
| Oven | Configured to customer needs |
| Temperature | 120-320℃ |
| Applications | Automotive interiors, filter materials, industrial textiles |
High-temperature glue setting machine for nonwovens, widely used in automotive interiors, filter materials and industrial textiles.
Published USE: high-temperature glue setting for nonwovens—widely used in automotive interiors, filter materials and industrial textiles.
Typical path: infeed / guide → glue apply → high-temp set / dry → cool / exit → rewind or downstream cut. Glue system, chamber length and heat source follow the order.
Published temperature band on TECH: 120–320℃. Oven configured to customer needs—do not treat mechanical top speed as a cure guarantee for every adhesive.
Model FH-220-420; nominal width on TECH is 200–400 cm (Key Advantages / old FAQ may still show 220–320 cm—quote the TECH table).
Machine speed 3–12 m/min; typical running speed 5–8 m/min. Heat-source mix oil 15% / gas 80% / steam 5% is series tendency. Temperature 120–320℃ must be matched to adhesive and substrate heat tolerance in the proposal.
Confirm end use (auto interior / filter / industrial), adhesive chemistry, coat weight, and residual strength targets before locking chambers.
Double-sided gluing device for carpet fabric (publication CN217250268U): public text describes double-sided gluing direction—process-adjacent to nonwoven glue application when both faces or heavy coat weights are discussed.
Oven temperature controlling means for carpet manufacture line (publication CN206131698U): published oven temperature-control direction for line ovens in the high-temp set window.
Preheating drying room (publication CN220062458U): related published preheat/oven-side direction when preheat is part of the quotation. Patent notes are technical directions only. See Carpet machinery.
This page: nonwoven high-temp glue setting (auto interior / filter / industrial) on FH-220-420 with published 120–320℃ band.
Nonwoven fiberglass mat board / automotive fiberglass board: film or powder → hot/cold press into boards—not glue-set only.
Nonwoven fabric coater: general nonwoven functional coats on the TC coating platform.
Usually a fit: nonwoven programs needing high-temp glue setting for automotive interiors, filters, or industrial textiles; width inside 200–400 cm; willingness to sample adhesive inside the published 120–320℃ band.
Usually another page: fiberglass mat board pressing (carpet-10 / other-03); carpet tile hosts (carpet-01/02); print/finish wet line (carpet-07).
Production line for PVC carpet tiles - backing coating, plastication and automatic cutting for tufted or needle-punched, nylon or polypropylene carpets, producing 50x50, 50x100, 25x100, 100x100 and polygonal tiles.
Production line for bitumen / TPO carpet tiles - back coating with bitumen/TPO, backing, cooling and automatic cutting for tufted or needle-punched carpets, available in slitting or fully automatic continuous production.
A: TECH: model FH-220-420; nominal width 200–400 cm; machine speed 3–12 m/min; typical running speed 5–8 m/min; heat mix oil 15% / gas 80% / steam 5%; oven configured; temperature 120–320℃. Full fields are in the TECH table.
A: Automotive interiors, filter materials, and industrial textiles—high-temperature glue setting for nonwovens.
A: Public CN217250268U (double-sided gluing), CN206131698U (oven temperature control for carpet lines), and CN220062458U (preheating drying room). Delivered heads and chambers follow the quotation.
A: carpet-10 (and other-03) publish film/powder lamination plus hot/cold pressing into boards. This page is high-temp glue setting for nonwovens without that board-press TECH set.
A: Substrate, adhesive chemistry, target temperature window inside 120–320℃, width, heat source, and output. Samples shorten head and oven design. Call +86 510 83397635 / +86 510 83382635 or email info@xhmachinery.com.
A: Yes. Xinghua custom-builds to your process. Machines run in 20+ countries; installation, operator training, and lifetime technical support are available under contract.
