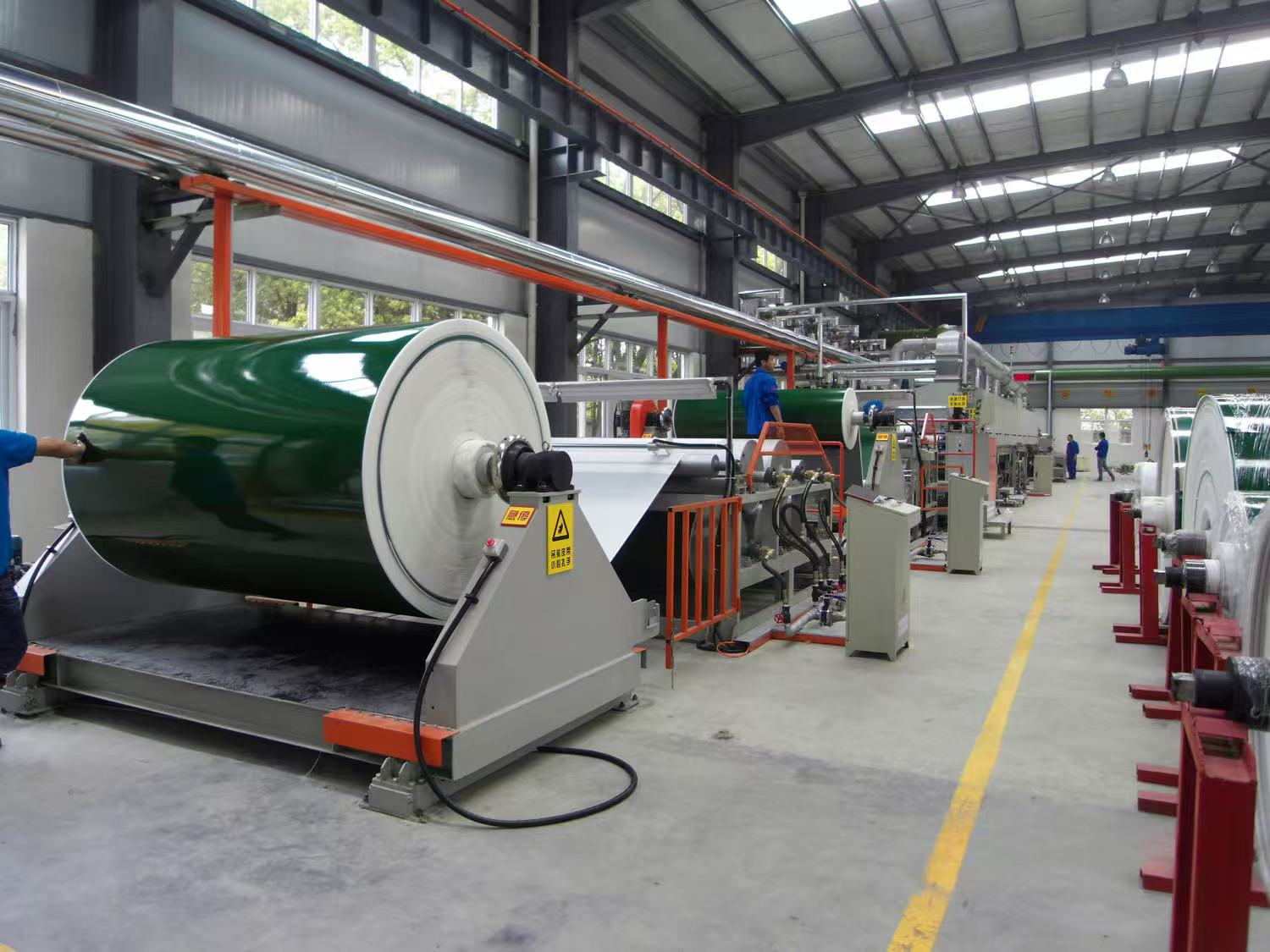

Machine dedicated to applying functional coatings on conveyor belts - improves abrasion resistance, anti-sticking, antistatic, high-temperature resistance or anti-corrosion, handles PU, PVC, rubber and epoxy coatings.
| Model / series | TC-180-420 |
|---|---|
| Nominal width | 180-420cm |
| Machine speed | 5-65m/min |
| Typical running speed | 30-40m/min |
| Heat source | thermal oil 90%; natural gas 5%; steam 5% |
| Oven | Configured to customer needs |
| Coatings | PU, PVC, rubber, epoxy |
| Functions | Abrasion resistance, anti-sticking, antistatic, high-temperature resistance, anti-corrosion |
| Industries | Mining, metallurgy, chemical, construction, food, logistics |
Machine dedicated to applying functional coatings on conveyor belts - improves abrasion resistance, anti-sticking, antistatic, high-temperature resistance or anti-corrosion, handles PU, PVC, rubber and epoxy coatings.

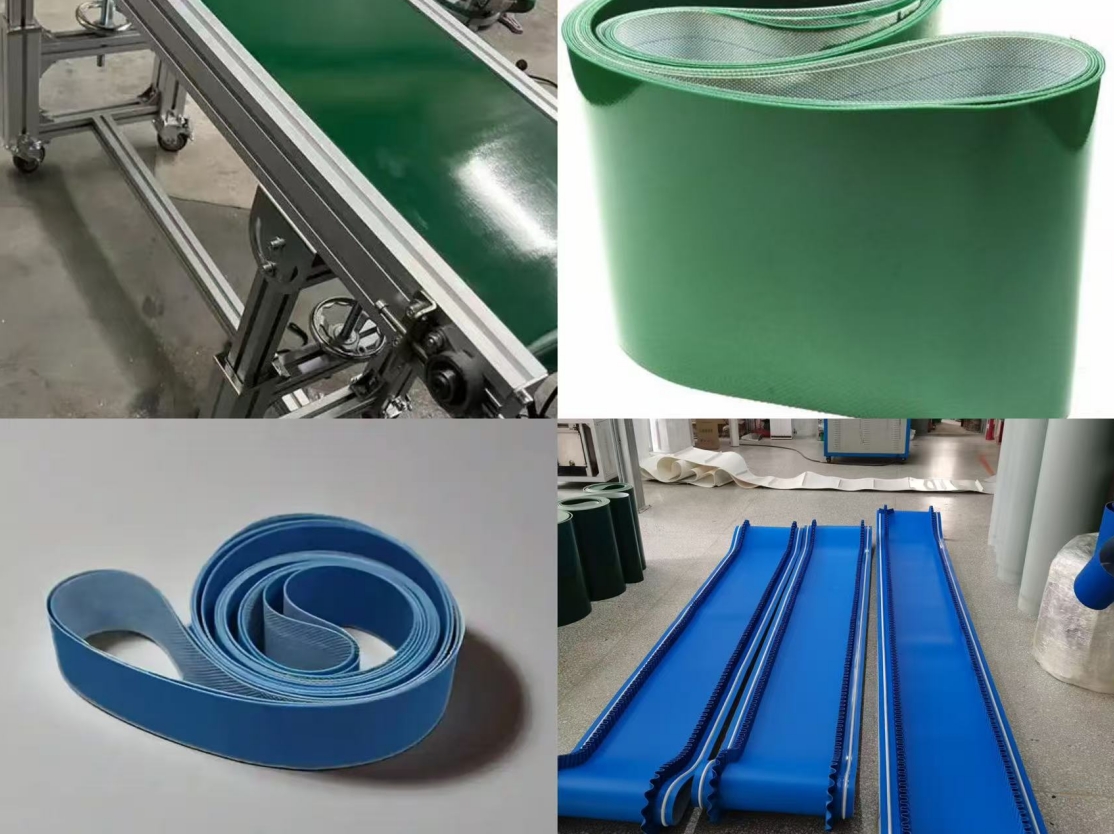

Published USE: functional coatings on conveyor belts—improves abrasion resistance, anti-sticking, antistatic, high-temperature resistance or anti-corrosion; handles PU, PVC, rubber and epoxy coatings.
Industries: mining, metallurgy, chemical, construction, food and logistics.

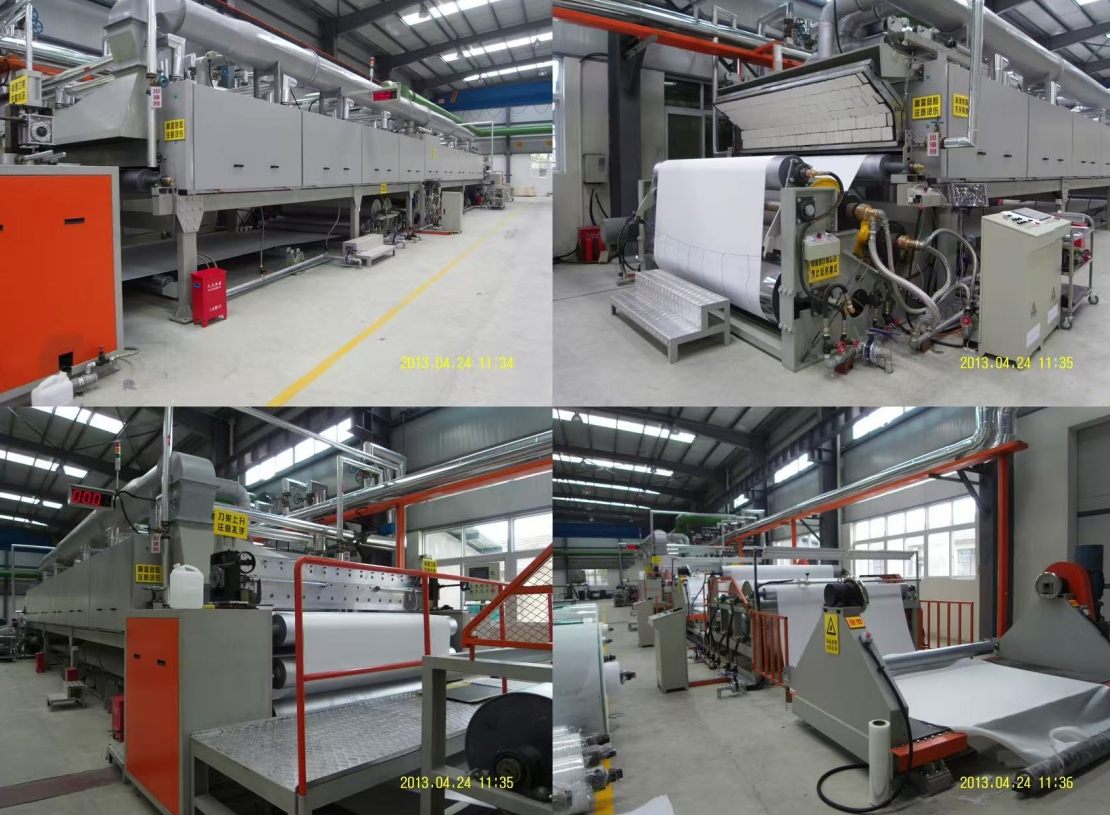

Typical path: belt / fabric unwind → coat → dry & set → cool → rewind. Heavy coats and rubber/epoxy systems need dryer length and tension matched to belt stiffness—sample before treating mechanical top speed as production speed.
Food-contact or antistatic packages are customer specification items: write them into the inquiry; do not assume every PU/PVC recipe meets every plant standard by default.
Model TC-180-420 platform family; this page specializes conveyor-belt functional coats.
Nominal width 180–420 cm; machine speed 5–65 m/min; typical running speed 30–40 m/min.
Heat mix oil 90% / gas 5% / steam 5%; oven configured to customer needs.
Coating head (CN205995710U) and combination coating head (CN205995709U): public directions for adjustable / combination heads when switching PU, PVC, rubber or epoxy packages.
Temperature-control feeding frame (CN205995744U): tension and centering into the head for wide industrial belts.
See Coating machinery. Patent notes are technical directions only.
This page: belt substrates with abrasion / anti-stick / antistatic / high-temp / anti-corrosion goals; PU/PVC/rubber/epoxy.
Tarpaulin: FR/weather covers for trucks and outdoor use.
Multi-function: general industrial textile films without belt focus.
Name belt construction, primary chemistry (PU / PVC / rubber / epoxy), priority functions, width, heat source, and output. Say if multiple chemistries must change over on one line.
Related: tarpaulin for FR/weather covers; vinyl floor line for floor plastication—not belt coats.
Usually a fit: industrial conveyor-belt coating programs in the published industries; width inside 180–420 cm; willingness to sample chemistry and belt construction.
Usually another page: advertising banner print (coating-03); carpet tile PVC plasticizing (carpet-01); vinyl floor line (carpet-12).
Even color coating, special hand feel and breathable functional coatings for a wide range of fabrics, compatible with PVC, epoxy and other industrial textile coatings.
Coating machine developed for blackout curtain fabrics, can also apply flocking - semi-blackout, full blackout, blackout flocking, flame retardant, heat insulation and UV protection finishing.
A: TECH: TC-180-420; nominal width 180–420 cm; machine speed 5–65 m/min; typical running speed 30–40 m/min; heat mix oil 90% / gas 5% / steam 5%; oven configured. Coatings: PU, PVC, rubber, epoxy.
A: Functions: abrasion resistance, anti-sticking, antistatic, high-temperature resistance, anti-corrosion. Industries: mining, metallurgy, chemical, construction, food, logistics—as published.
A: Public CN205995710U / CN205995709U (coating / combination heads) and CN205995744U (temp-control feeding frame). Delivered options follow the quotation.
A: Tarpaulin (coating-06) is FR/weather cover fabric. Vinyl floor (carpet-12) is a dedicated floor coating / plastication line with its own TECH band. This page is belt functional coating on the TC platform.
A: Belt construction, primary chemistry, target functions, width, heat source, and output. Samples shorten head and dryer design. Call +86 510 83397635 / +86 510 83382635 or email info@xhmachinery.com.
A: Yes. Xinghua custom-builds to your process. Machines run in 20+ countries; installation, operator training, and lifetime technical support are available under contract.
