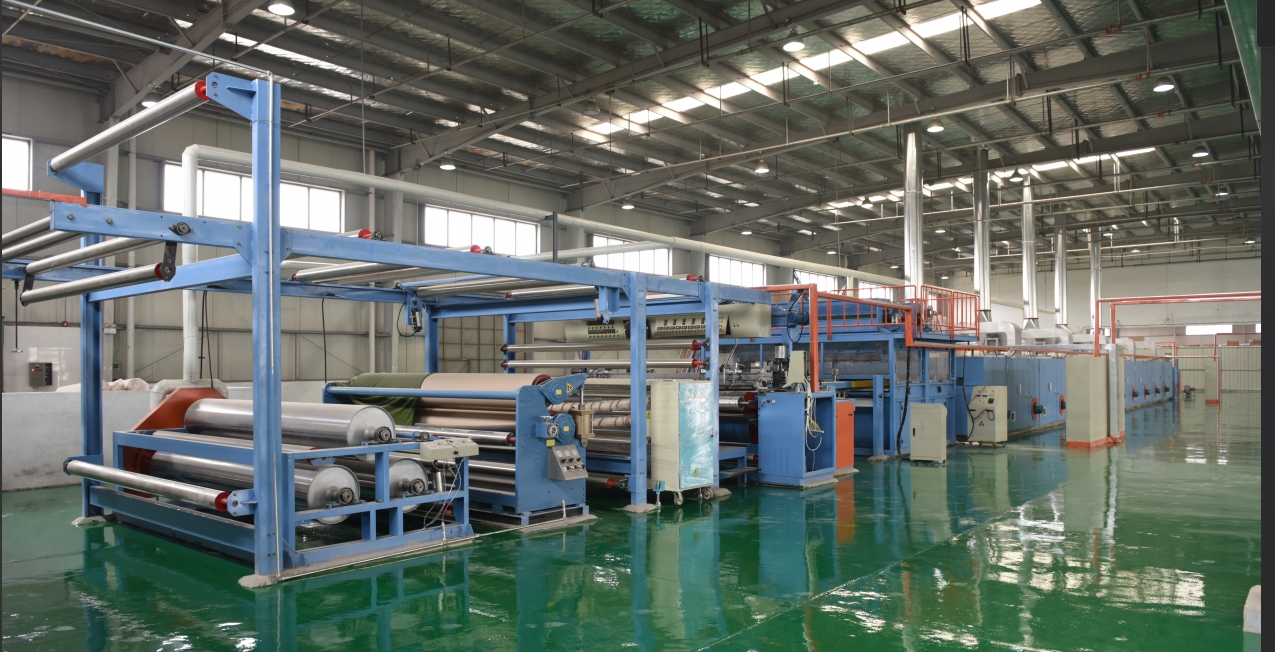

High-performance coating machine for luggage fabrics - pad-impregnation and coating of oxford and other luggage fabrics for waterproof, hydrostatic resistance, anti-aging, abrasion resistance and easy cleaning.
| Model / series | TC-180-420 |
|---|---|
| Nominal width | 180-420cm |
| Machine speed | 5-65m/min |
| Typical running speed | 30-40m/min |
| Heat source | thermal oil 90%; natural gas 5%; steam 5% |
| Oven | Configured to customer needs |
| Fabrics | Oxford and other luggage fabrics |
| Process | Pad-impregnation, coating |
| Functions | Waterproof, hydrostatic resistance, anti-aging, abrasion resistance, easy cleaning |
High-performance coating machine for luggage fabrics - pad-impregnation and coating of oxford and other luggage fabrics for waterproof, hydrostatic resistance, anti-aging, abrasion resistance and easy cleaning.
Published USE: pad-impregnation and coating of oxford and other luggage fabrics for waterproof, hydrostatic resistance, anti-aging, abrasion resistance and easy cleaning.

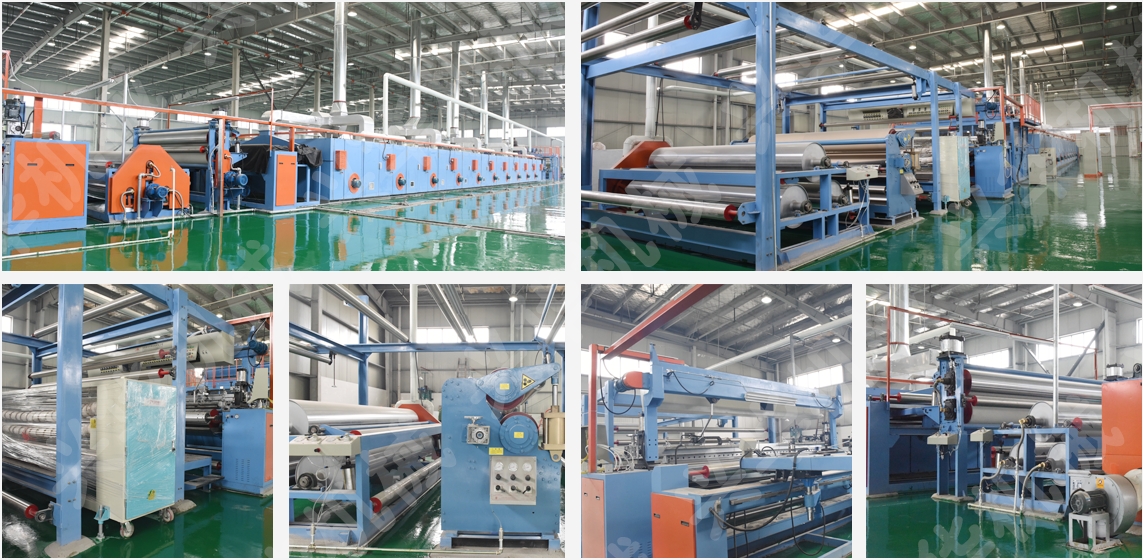

Typical path: unwind → pad-impregnation and/or knife/pad coat → dry & set → cool → rewind. Pad entry helps drive chemistry into oxford constructions; coat weight and cure decide hand and hydrostatic behavior.
Full-line interlocked drive and even coating at speed are named in Key Advantages—still sample before locking shift output at the top of the mechanical band.
Model TC-180-420: same published width/speed platform family; this page locks luggage oxford USE.
Nominal width 180–420 cm; machine speed 5–65 m/min; typical running speed 30–40 m/min. Hydrostatic and abrasion targets usually pull stable speed below max.
Heat mix thermal oil 90% / natural gas 5% / steam 5%; oven configured to customer needs.
Coating head (CN205995710U) and combination coating head (CN205995709U): public texts describe adjustable / combination head layouts useful when pad and knife recipes share one inquiry.
Temperature-control feeding frame (CN205995744U): steadies tension, centering and infeed tracking before critical waterproof coats.
More on Coating machinery. Patent notes are technical directions only.
This page: oxford / luggage pad-coat for waterproof and wear-related functions.
Banner: outdoor print chemistries on polyester/fiberglass.
Tarpaulin: FR and weather covers for transport / architecture.
Multi-function: mixed industrial films without luggage focus.
Usually a fit: oxford and luggage fabric programs needing pad-impregnation plus functional coat; width inside 180–420 cm; willingness to sample hydrostatic and abrasion on customer fabric.
Usually another page: banner print faces (coating-03); nonwoven medical/hygiene coats (coating-07); carpet backing (Carpet).
Even color coating, special hand feel and breathable functional coatings for a wide range of fabrics, compatible with PVC, epoxy and other industrial textile coatings.
Coating machine developed for blackout curtain fabrics, can also apply flocking - semi-blackout, full blackout, blackout flocking, flame retardant, heat insulation and UV protection finishing.
A: TECH: model TC-180-420; nominal width 180–420 cm; machine speed 5–65 m/min; typical running speed 30–40 m/min; heat mix oil 90% / gas 5% / steam 5%; oven configured. Fabrics: oxford and other luggage fabrics; process: pad-impregnation, coating.
A: Waterproof, hydrostatic resistance, anti-aging, abrasion resistance, and easy cleaning—as published on this page. Acceptance values are not invented here; lock them with samples in the proposal.
A: Published process names pad-impregnation and coating. Public patents CN205995710U / CN205995709U describe coating-head and combination-head directions. Tell us your pad vs knife mix; the quotation locks the head.
A: Same TC-180-420 platform family, but this page locks luggage oxford USE and pad-impregnation focus. Use coating-01 for broader industrial films without a luggage SKU focus.
A: Fabric construction, target functions, chemistry preference, width, heat source, and shift output. Fabric and paste samples shorten pad/head and dryer design. Call +86 510 83397635 / +86 510 83382635 or email info@xhmachinery.com.
A: Yes. Xinghua custom-builds to your process. Machines run in 20+ countries; installation, operator training, and lifetime technical support are available under contract.
