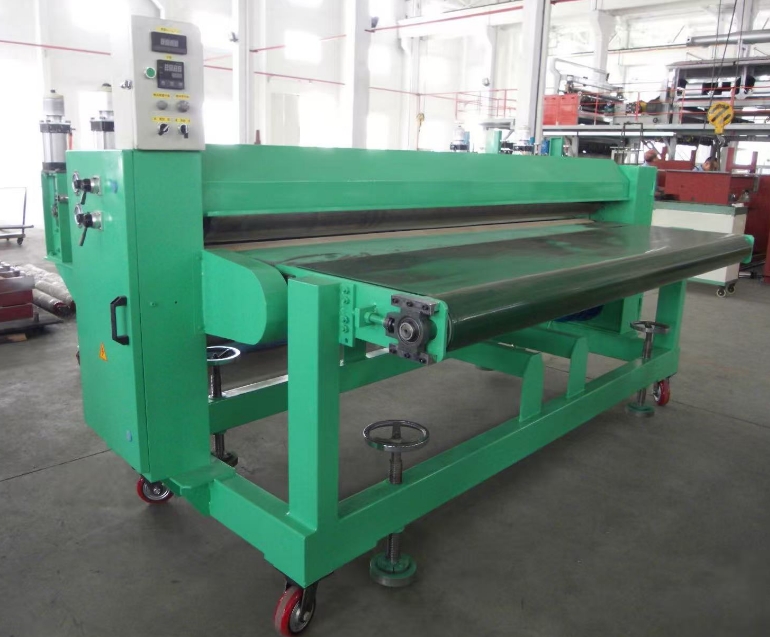

Automatic fixed-length cutting machine for carpets and nonwovens - high length accuracy, adaptable to widths of 100-300cm.
| Model / series | GQ-190-270 |
|---|---|
| Nominal width | 190-270cm |
| Machine speed | 1-15m/min |
| Typical running speed | 5-6m/min |
| Heat source | electricity |
| Oven | No oven |
| Length accuracy | ±1.5mm |
Automatic fixed-length cutting machine for carpets and nonwovens - high length accuracy, adaptable to widths of 100-300cm.
Published USE: automatic fixed-length cutting for carpets and nonwovens—high length accuracy, adaptable to widths of 100–300 cm.
Typical path: unwind / infeed → length measure / register → fixed-length cut → exit stack or rewind. No oven on this page—heat source is electricity.
This is a roll/fixed-length cutter for carpet and nonwoven webs—not the continuous tile cutter on carpet-11.
Model GQ-190-270; TECH nominal width 190–270 cm. USE wording “adaptable to widths of 100–300 cm” describes cut adaptability—do not replace the TECH nominal with that phrase in quotations. Old FAQ text that treated 100–300 cm as nominal width should be replaced.
Machine speed 1–15 m/min; typical running speed 5–6 m/min; length accuracy ±1.5 mm on TECH. Mechanical max is not a promise for every thickness and knife load.
Bring cut length SKUs, material (carpet vs nonwoven), and exit handling so knife and register can be checked together.
Cutting device (publication CN219726493U): public cutting-device direction relevant to fixed-length cut stations.
Roll cutter with self-cleaning function (publication CN215241141U): published roll-cutter direction with self-cleaning—useful when residue on the cut station is a concern.
Linear-guide freely adjusting side-cut device (publication CN218466186U): side-cut adjustment direction for edge/trim cuts. These are technical directions only—not tile-cutter water-dipping patents used on carpet-11. Category: Carpet machinery.
This page: carpet & nonwoven automatic fixed-length cutting (GQ-190-270; electricity; no oven; ±1.5 mm length accuracy).
Automatic continuous cutting (tile): QK series continuous tile cutting without stopping—square-carpet knife/pusher patents.
Upstream glue-set or board lines (carpet-09 / carpet-10) may feed this cutter when cutting is a separate module.
Usually a fit: carpet or nonwoven plants needing fixed-length cuts with published ±1.5 mm length accuracy; width inside TECH 190–270 cm nominal; pairing with Xinghua nonwoven or carpet upstream modules.
Usually another page: continuous tile cutting (carpet-11); packaging turn-over/stack (carpet-04); fiberglass board press host design (carpet-10) when the ask is the full board line, not a standalone cutter.
Production line for PVC carpet tiles - backing coating, plastication and automatic cutting for tufted or needle-punched, nylon or polypropylene carpets, producing 50x50, 50x100, 25x100, 100x100 and polygonal tiles.
Production line for bitumen / TPO carpet tiles - back coating with bitumen/TPO, backing, cooling and automatic cutting for tufted or needle-punched carpets, available in slitting or fully automatic continuous production.
A: TECH: model GQ-190-270; nominal width 190–270 cm; machine speed 1–15 m/min; typical running speed 5–6 m/min; heat source electricity; no oven; length accuracy ±1.5 mm. USE notes adaptability to widths of 100–300 cm—quote TECH nominal for the machine frame.
A: The published function is automatic cut-to-length for carpet and nonwoven webs (not continuous square-tile cutting). Sustainable rate still depends on material thickness and knife condition inside the 1–15 m/min band.
A: Public CN219726493U (cutting device), CN215241141U (roll cutter with self-cleaning), and CN218466186U (linear-guide side-cut adjustment). Delivered knife and guide options follow the quotation—not every drawing feature by default.
A: carpet-11 is the QK continuous cutter for square carpet tiles (water-dipping / pusher patents). This GQ page cuts carpet and nonwoven webs to fixed length with electricity and no oven.
A: Material (carpet / nonwoven), cut length SKUs, width, thickness, accuracy need vs ±1.5 mm published, and exit handling. Call +86 510 83397635 / +86 510 83382635 or email info@xhmachinery.com.
A: Yes. Xinghua custom-builds to your process. Machines run in 20+ countries; installation, operator training, and lifetime technical support are available under contract.
