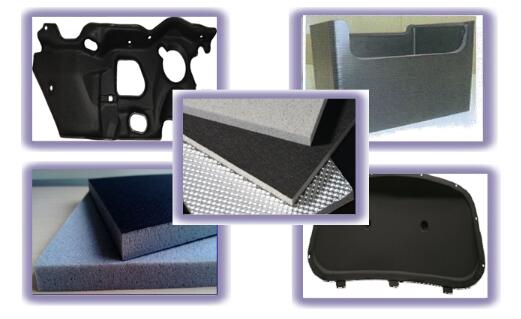

Processes nonwoven fiberglass mat for automotive applications - high-temperature setting, film lamination (or powder coating), hot pressing, cold pressing into boards and cutting.
| Model / series | ZH-190-270 |
|---|---|
| Nominal width | 180-250cm |
| Machine speed | 3-12m/min |
| Typical running speed | 5-6m/min |
| Heat source | thermal oil 15%; natural gas 80%; steam 5% |
| Oven | Configured to customer needs |
| Materials | Nonwoven fiberglass mat (automotive) |
| Processes | High-temperature setting, film/powder lamination, hot pressing, cold pressing into boards, cutting |
Processes nonwoven fiberglass mat for automotive applications - high-temperature setting, film lamination (or powder coating), hot pressing, cold pressing into boards and cutting.
Published USE: processes nonwoven fiberglass mat for automotive applications—high-temperature setting, film lamination (or powder coating), hot pressing, cold pressing into boards and cutting.

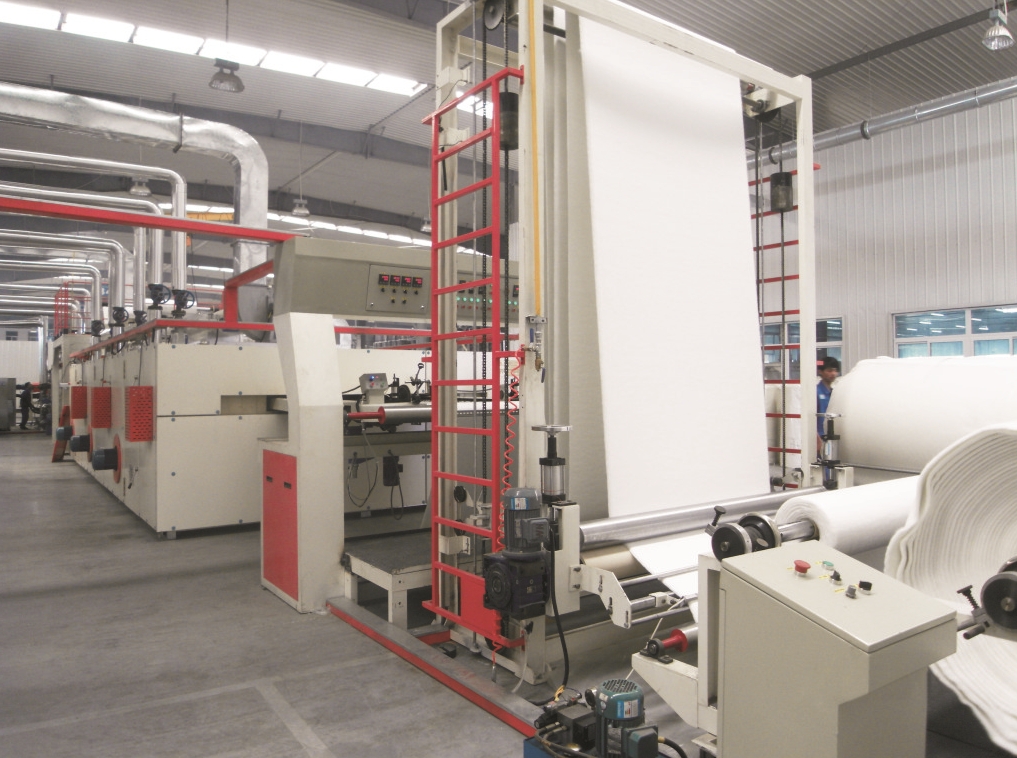

Typical path: mat infeed → high-temp set → film laminate or powder (dusting) coat → hot press → cold press into board → cut. Choose film vs powder as the primary composite path before locking heads.

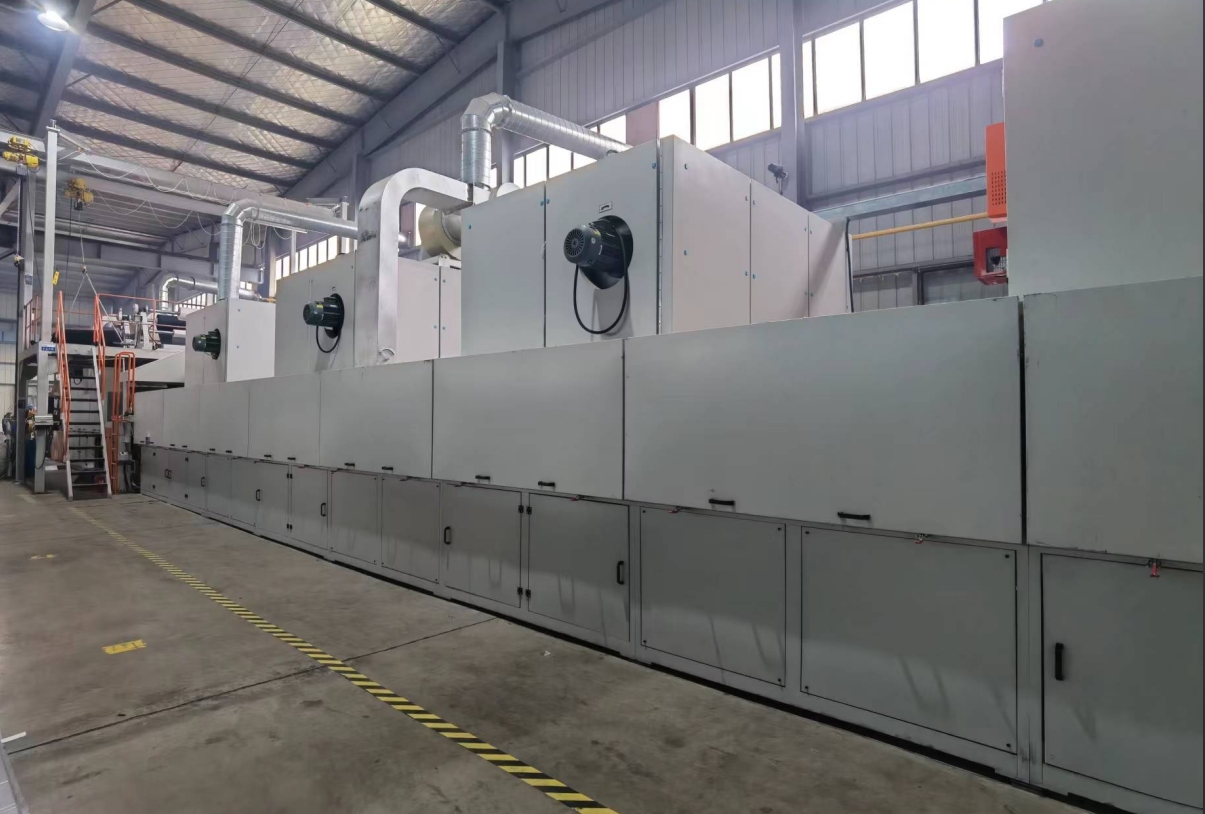

Oven configured to customer needs. This Carpet-category listing is the mat-to-board host next to other carpet nonwoven pages; the Other-category twin is other-03—sales aligns which page your inquiry rides.
Model ZH-190-270; nominal width 180–250 cm; machine speed 3–12 m/min; typical running speed 5–6 m/min.
Heat-source mix oil 15% / gas 80% / steam 5% is series tendency. Press windows and film/powder choice decide the stable speed—not mechanical max alone.
Confirm mat basis weight, board thickness target, film vs powder, and cut size before promising top speed or locked density grades.
Material dusting device (publication CN218423916U): public text describes a dusting/powdering direction—maps cleanly to the published powder-coat composite option.
Roller laminating device with pressing structure (publication CN214919218U): laminating/pressing direction for the film-lamination path.
Cold pressing plate device (publication CN220149875U): published cold-press plate direction matching the cold-pressing-into-boards step. Patent notes are technical directions only. Category: Carpet machinery.
This page (Carpet): fiberglass mat → set → film/powder → hot/cold press → cut, listed with carpet/nonwoven neighbors.
Automotive fiberglass board (Other): same ZH-190-270 TECH family for automotive board programs filed under Other—compare, don’t double-order identical scopes.
Nonwoven high-temp glue setting: glue set without the published board press/cut chain.
Usually a fit: automotive nonwoven fiberglass mat programs needing set + film or powder + hot/cold board press + cut; width inside 180–250 cm; samples available for press trials.
Usually another page: glue-set-only nonwovens (carpet-09); PVC/bitumen tiles (carpet-01/02); latex mattress (other-02); conveyor belt coat/lam (other-01).
Production line for PVC carpet tiles - backing coating, plastication and automatic cutting for tufted or needle-punched, nylon or polypropylene carpets, producing 50x50, 50x100, 25x100, 100x100 and polygonal tiles.
Production line for bitumen / TPO carpet tiles - back coating with bitumen/TPO, backing, cooling and automatic cutting for tufted or needle-punched carpets, available in slitting or fully automatic continuous production.
A: TECH: model ZH-190-270; nominal width 180–250 cm; machine speed 3–12 m/min; typical running speed 5–6 m/min; heat mix oil 15% / gas 80% / steam 5%; oven configured. Materials: nonwoven fiberglass mat (automotive). Full fields are in the TECH table.
A: Both appear on the published process list. Stable film specs often lean film; adjustable powder add-on leans dusting. Lock one primary path with samples—public patent CN218423916U covers dusting direction; CN214919218U covers roller laminating.
A: Public CN220149875U describes a cold pressing plate device—process context for the cold-pressing-into-boards step. Delivered press geometry follows the quotation.
A: TECH family and USE wording are closely related. This page sits in Carpet next to other nonwoven hosts; other-03 sits in Other as the automotive board listing. Send one inquiry with mat/board specs—sales will not sell two identical lines for the same scope.
A: Mat basis weight, board thickness/size, film vs powder preference, heat source, cut size, and output. Samples shorten press and oven design. Call +86 510 83397635 / +86 510 83382635 or email info@xhmachinery.com.
A: Yes. Xinghua custom-builds to your process. Machines run in 20+ countries; installation, operator training, and lifetime technical support are available under contract.
