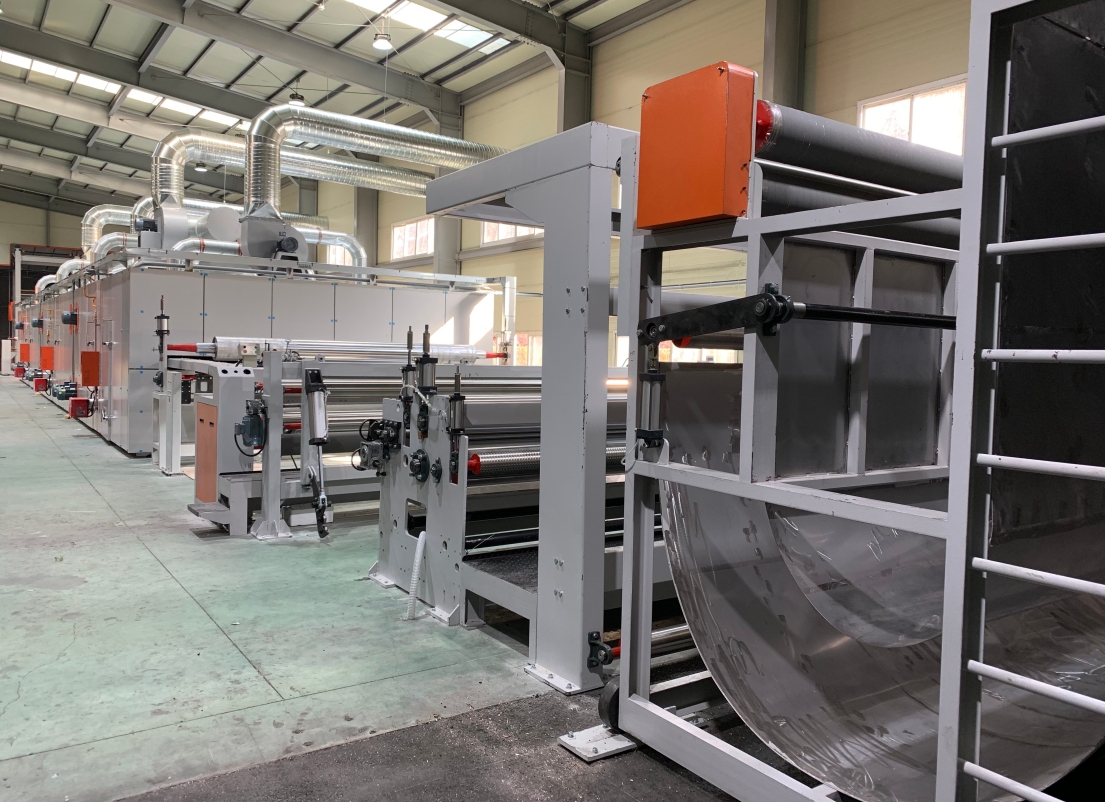

Backing machine for artificial grass carpet - backing, drying and setting with working width up to 420-520cm.
| Model / series | FH-420/520 |
|---|---|
| Nominal width | 400/500cm |
| Machine speed | 3-8m/min |
| Typical running speed | 5-7m/min |
| Heat source | thermal oil 15%; natural gas 80%; steam 5% |
| Oven | Configured to customer needs |
| Purpose | Artificial grass carpet backing, drying and setting |
Backing machine for artificial grass carpet - backing, drying and setting with working width up to 420-520cm.
Published USE: backing machine for artificial grass carpet—backing, drying and setting with working width up to 420–520 cm.
Typical path: grass greige infeed → backing coat → dry & set → cool → rewind. Tuft lock, coat weight, and dryer length decide pull-out and dimensional stability—sample grass construction before locking shift output.
Oven configured to customer needs. Heat-source mix on TECH favors natural gas for this series.
When latex and alternative chemistries are both under discussion, lock primary chemistry and dryer energy before promising the top of the 3–8 m/min band.
Model FH-420/520; nominal width 400/500 cm (Key Advantages also note 330–420 cm / 520 cm optional context—quote from TECH 400/500 and confirm option in the proposal).
Machine speed 3–8 m/min; typical running speed 5–7 m/min. Grass pile height and latex/PU system usually set the stable window inside that band.
Confirm gauge, pile, primary backing, and chemistry (latex vs other) before locking head and chambers.
Oven temperature controlling means for carpet manufacture line (CN206131698U): temperature-control direction for carpet ovens used in backing/drying.
Double-sided gluing device for carpet fabric (CN217250268U): gluing direction relevant when grass programs need structured coat application.
Electro-hydraulic servo in carpet coating (CN206111703U): servo control direction for coating-process motion. Patent notes are technical directions only. See Carpet machinery.
This page: artificial grass backing / drying / setting on FH-420/520 widths.
Woven Axminster/Wilton line: woven coating/laminating chain—not grass.
Combined drying oven: woven/tufted carpet backing & lamination oven host.
Usually a fit: artificial grass backing programs needing drying and setting at 400/500 cm class widths; willingness to sample latex/PU and pile construction.
Usually another page: Axminster/Wilton woven (carpet-06); carpet tile PVC/bitumen (carpet-01/02); vinyl floor (carpet-12).
Production line for PVC carpet tiles - backing coating, plastication and automatic cutting for tufted or needle-punched, nylon or polypropylene carpets, producing 50x50, 50x100, 25x100, 100x100 and polygonal tiles.
Production line for bitumen / TPO carpet tiles - back coating with bitumen/TPO, backing, cooling and automatic cutting for tufted or needle-punched carpets, available in slitting or fully automatic continuous production.
A: TECH: model FH-420/520; nominal width 400/500 cm; machine speed 3–8 m/min; typical running speed 5–7 m/min; heat mix oil 15% / gas 80% / steam 5%; oven configured. USE notes working width up to 420–520 cm.
A: Artificial grass carpet backing, drying and setting. Coat chemistry and pile construction are locked in the proposal with samples—not invented as acceptance values here.
A: Public CN206131698U (oven temperature control), CN217250268U (double-sided gluing), CN206111703U (electro-hydraulic servo in carpet coating). Delivered options follow the quotation.
A: carpet-06 is Axminster/Wilton woven coating/laminating with a published multi-step chain and 2×4 m oven sections. This page is grass-specific backing/drying/setting on FH-420/520.
A: Gauge, pile height, primary backing, chemistry, width (420 vs 520 class), heat source, and output. Samples shorten head and oven design. Call +86 510 83397635 / +86 510 83382635 or email info@xhmachinery.com.
A: Yes. Xinghua custom-builds to your process. Machines run in 20+ countries; installation, operator training, and lifetime technical support are available under contract.
