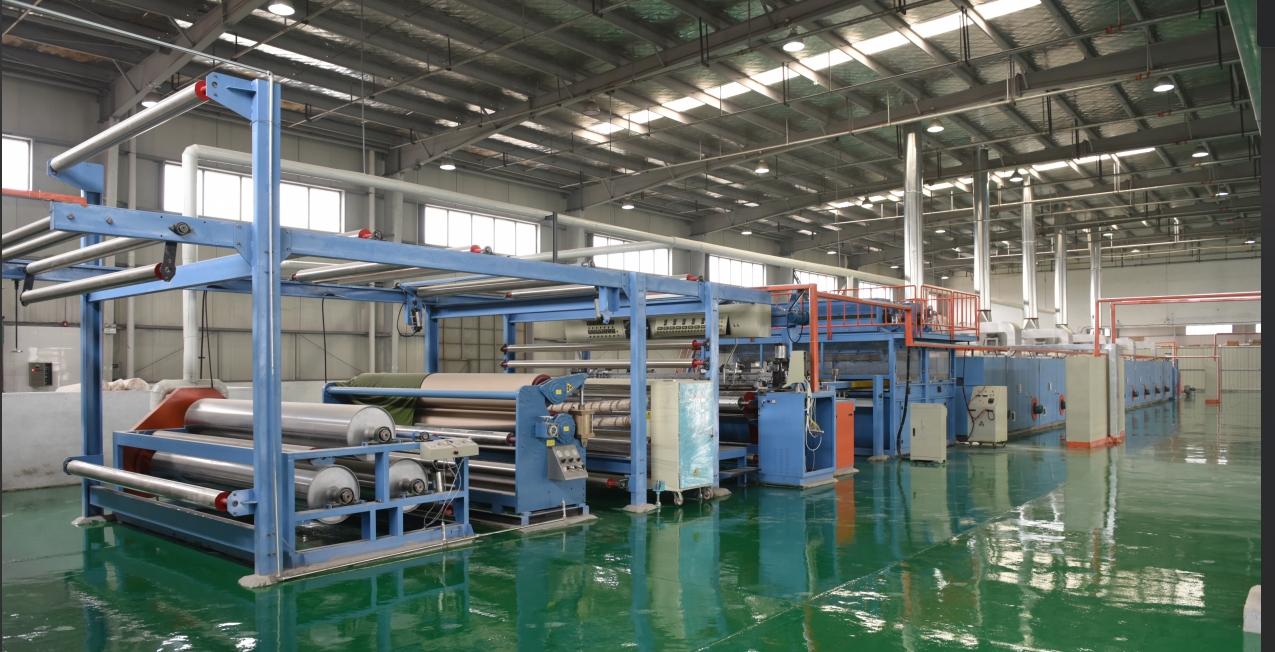

High-performance coating machine developed for mesh fabrics - pad-impregnation coating for yarn locking, anti-sticking, anti-slip and high-temperature resistance.
| Model / series | TC-180-420 |
|---|---|
| Nominal width | 180-420cm |
| Machine speed | 5-65m/min |
| Typical running speed | 30-40m/min |
| Heat source | thermal oil 90%; natural gas 5%; steam 5% |
| Oven | Configured to customer needs |
| Fabrics | Mesh fabric |
| Functions | Yarn locking, anti-sticking, anti-slip, high-temperature resistance |
| Applications | Car seat cushions, seat covers, large advertising banners |
High-performance coating machine developed for mesh fabrics - pad-impregnation coating for yarn locking, anti-sticking, anti-slip and high-temperature resistance.
Published USE: pad-impregnation coating for mesh fabrics—yarn locking, anti-sticking, anti-slip and high-temperature resistance.
Applications named: car seat cushions and covers; large advertising banner mesh.

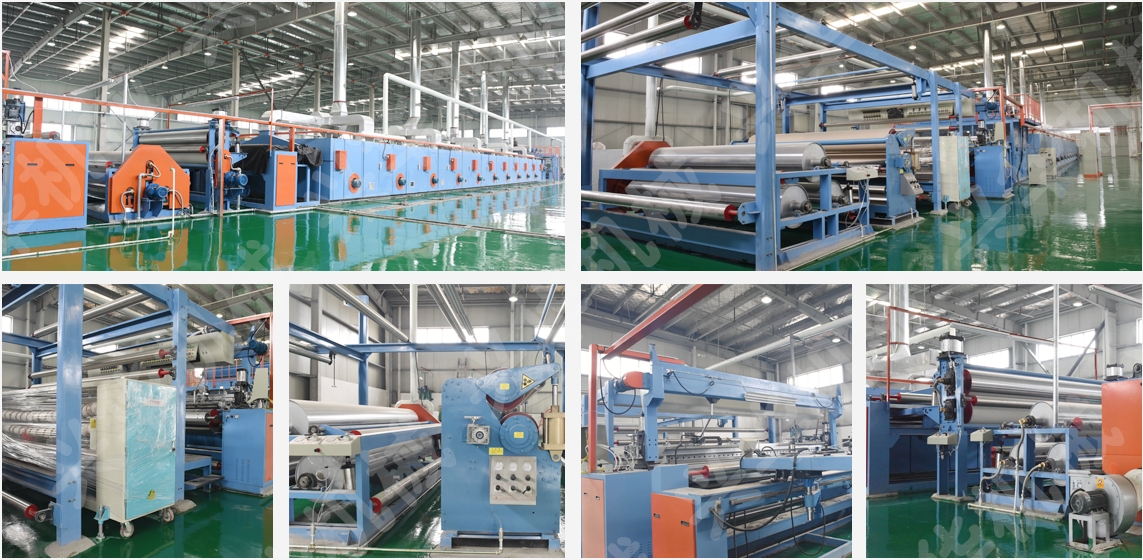

Typical path: unwind → pad-impregnation coat → dry & set → cool → rewind. Open mesh needs even pickup without closing pores where airflow or print see-through is required—knife/pad choice follows the mesh opening and end use.
When the same inquiry mixes auto-seat mesh and banner mesh, list both openings and chemistry windows early so one head layout does not fight the other.
Model TC-180-420 platform family; this page specializes mesh USE.
Nominal width 180–420 cm; machine speed 5–65 m/min; typical running speed 30–40 m/min. Open meshes often run steadier below mechanical max once pickup and dryer length are locked.
Heat mix oil 90% / gas 5% / steam 5%; oven configured to customer needs.
Coating head (CN205995710U): adjustable head direction for mesh pickup and gap setting.
Temperature-control feeding frame (CN205995744U): steadies tension and centering so open mesh does not walk or wrinkle into the pad.
Cylinder coating head (CN205934402U) is a related published head direction when roll/cylinder coat is proposed. See Coating machinery. Patent notes are technical directions only.
This page: mesh yarn-lock / anti-slip / high-temp pad-coat (auto seats and banner mesh).
Banner: solid outdoor print faces with PU/PVC/epoxy/silicone.
Luggage: oxford pad-coat for waterproof / wear functions.
Name mesh opening, yarn material, target functions (yarn lock / anti-stick / anti-slip / high-temp), chemistry, width, and heat source.
Related: banner coater for solid outdoor print faces; multi-function for mixed industrial films without mesh focus.
Usually a fit: mesh programs needing yarn lock, anti-stick, anti-slip or high-temp finish; width inside 180–420 cm; samples available.
Usually another page: solid banner print without mesh opening (coating-03); conveyor belt coats (coating-08); filter-cloth heat-set without coat (stenter-02).
Even color coating, special hand feel and breathable functional coatings for a wide range of fabrics, compatible with PVC, epoxy and other industrial textile coatings.
Coating machine developed for blackout curtain fabrics, can also apply flocking - semi-blackout, full blackout, blackout flocking, flame retardant, heat insulation and UV protection finishing.
A: TECH: TC-180-420; nominal width 180–420 cm; machine speed 5–65 m/min; typical running speed 30–40 m/min; heat mix oil 90% / gas 5% / steam 5%; oven configured. Functions: yarn locking, anti-sticking, anti-slip, high-temperature resistance.
A: Car seat cushions and covers; large advertising banner mesh—as published. Tell us mesh opening and end use so pad pickup does not close pores where airflow or see-through is required.
A: Public CN205995710U (coating head), CN205995744U (temp-control feeding frame); optional related CN205934402U (cylinder coating head). Delivered options follow the quotation.
A: Same platform family, different USE. Banner (coating-03) focuses on solid outdoor print chemistries; this page focuses on mesh yarn-lock and related functions.
A: Mesh construction/opening, target functions, chemistry, width, heat source, and output. Samples shorten pad and dryer design. Call +86 510 83397635 / +86 510 83382635 or email info@xhmachinery.com.
A: Yes. Xinghua custom-builds to your process. Machines run in 20+ countries; installation, operator training, and lifetime technical support are available under contract.
