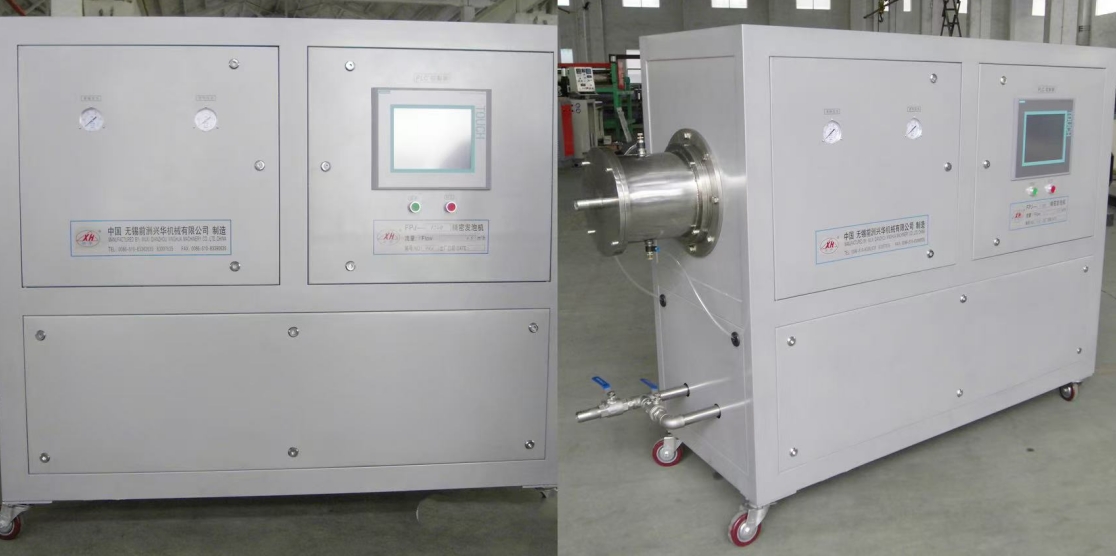

FPJ-1500数控精密发泡机
主要技术参数 main technical parameters
发泡胶量Foaming rubber dosage | 0.3～1.5m/h（0.3～2t手动调节或全自动PLC跟踪涂层车速） |
发泡头温度 Foaming head temp. | ≤40℃ |
适用室温Applicable ambient temp. | -10～35℃ |
大气压影响 Atmospheric pressure range | 海拔0-2500m PLC设置 |
物料与空气倍率 Ratio between throughput/air | 20℃～80℃ （PLC设置/ set-up） |
适用浆料粘度 Applicable glue viscosity | 1000-60000cps |
供料方式Feeding mode | 螺旋泵或软泵管 |
整机功率 Total power | 5.5KW（标准配置 standard set-up mode） |
外形尺寸 Size | L 1600mm×W 650mm×H 1350mm |
整机重量 weight | 400KG |
产品用途
该发泡机适用于干法水性PU合成革的胶料发泡，用来替代湿法PU合成革，以改变复杂的加工工艺从而达到降低成本，并具有环保、节能的特点。加工出的产品有极好的透气性。也可用于地毯、人造毛皮的背胶、窗帘布的发泡涂层、乳胶、橡胶、化妆品等的发泡。
This machine model is designed for the dry rubber foaming process of fluid PU synthetic leather as a replacment of the wet process to change the complicated manufacturing process, resulting in lower costs, environmental-friendliness,energy efficiency and optimal porosity of end products.
It is also designed for carpet and artificial fur backing operation, curtain cloth foaming/coating operation and foaming operation of latex, rubber and cosmetics and more.

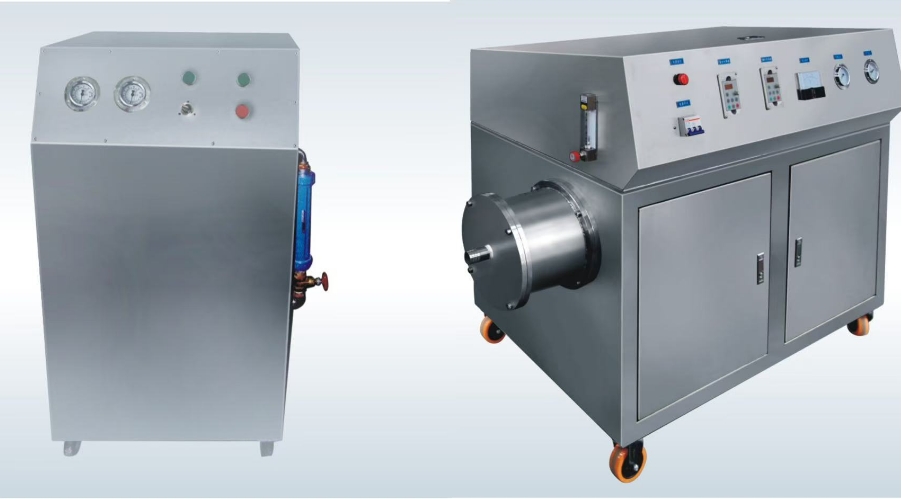

FPJ-Ⅰ/FPJ-Ⅱ发泡机
主要技术参数 main technical parameters
发泡胶量Foaming rubber dosage | I型40～300kg/h，II型100～800kg/h Type I 40～300kg/h，type II 100～800kg/h |
发泡比 Foaming ratio | 2～8倍可调节 |
适用粘度 Applicable viscosity | 200-20000cps |
外形尺寸 Size | I型 500mm×600mm×1200mm II型 1550mm×800mm×1200mm type I 500mm×600mm×1200mm |
产品用途
该产品适用于织物涂层胶、地毯胶、装饰、人造毛皮、玻璃纤维、人造革基布、窗帘布、无纺布涂层及后整理。该发泡机具有气液、泡沫密度半自动及全自动变频控制系统。
The product is applicable to fabric coating glue, carpet glue and ornament, artificial fur, glass fiber, artificial leather base fabric, curtain fabric, non-woven fabric coating and finishing. This foaming machine has semi-automatic and fully automatic frequency control systems for gas-liquid and foam density.
