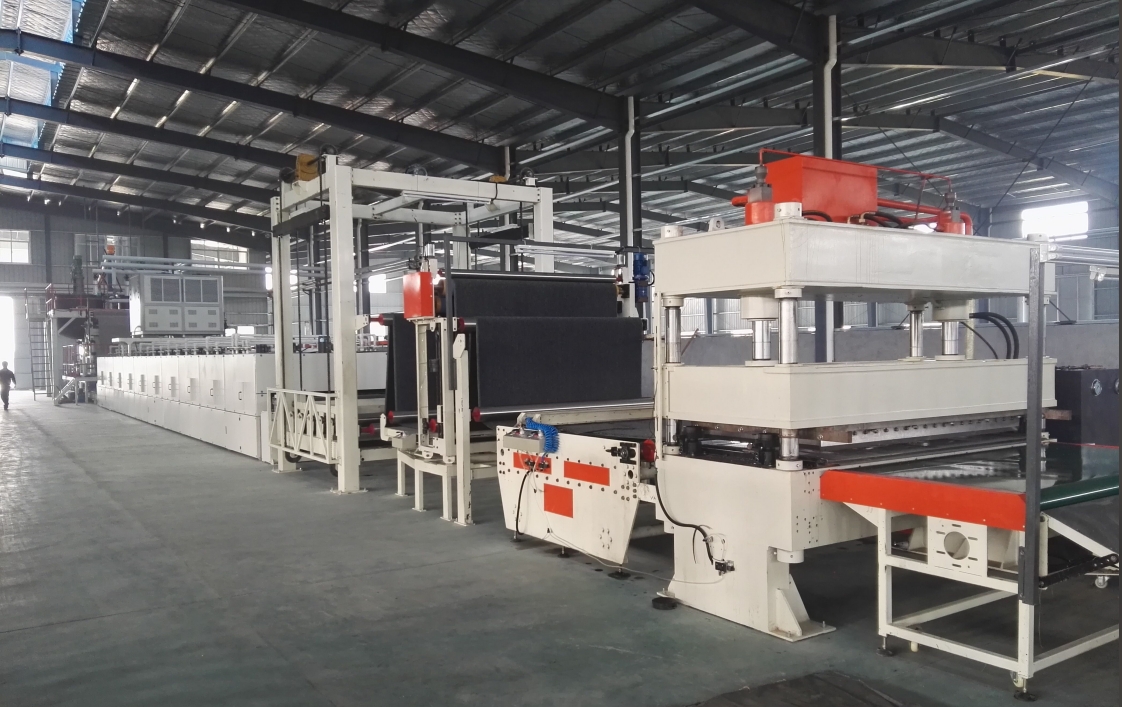

沥青/TPO拼块地毯生产线
主要技术参数 main technical parameters
公称幅宽 Width | 120/220cm可调（有效幅宽100/200cm） 120/220cm adjustable(valuable width is 100/200cm) |
| 机械速度 Mechanical speed | 1~10m/min变频调速 1~10m/min frequency control |
方块尺寸 Tile size | 50cm×50cm、 50cm×100cm、 25cm×100cm、 100cm×100cm、多边形Polygon |
| 传动方式 Transmission mode | 输送链条 transmission chain |
热源 Heating source | 导热油 (20万大卡供油温度250℃） conduction oil (200,000 kilocalories at 250℃) |
烘箱温度 Oven temperature | 100~200℃自动温控 auto constant temp. control from 100 to 200℃ |
冷却温度Cooling temperature | 20~60℃自动冷却控温 auto water-cooling temp.control from 20~60℃ |
整机功率 Total power | ≈45KW 全自动≈60KW approx.45KW, approx.60KW with full auto operation |
生产方式Operating mode | 分切/全自动连续生产 Separate cutting/full auto continuous production |
产品用途
适用于簇绒或针刺、尼龙或丙纶地毯的背面涂沥青/TPO、支底、凝固以及自动切块等流水生产线
Intended for tufting, knitting, and nylon or PP fibre carpet backing bitumen/TPO, subbase, drying as well as auto tile cutting production line.
